Simplicity
Simplicity

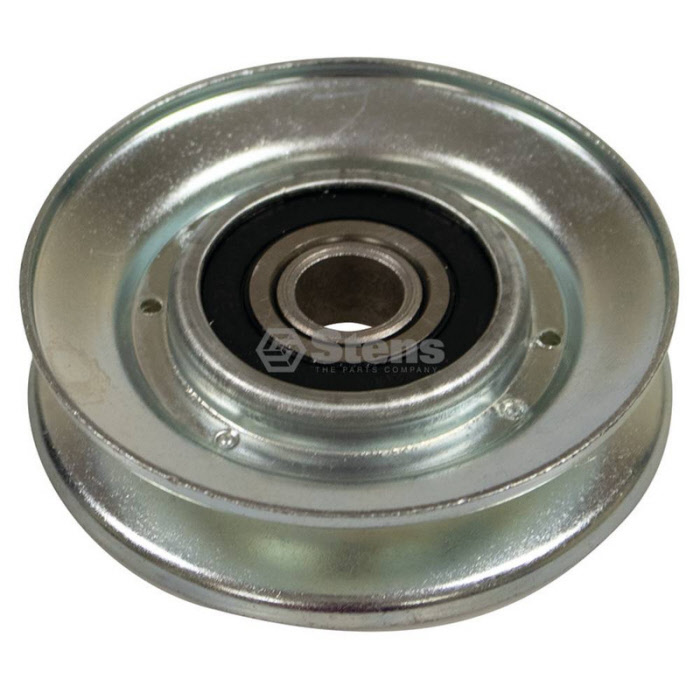

"V" Idler 624530
From
Add to cart
STE280-271
REPLACES OEM
AYP
110484X, 583659801, 8846R
CaseIH
C17213
Gravely
009231, 20034800
Massey Ferguson
834336M1
Murray
32743, 35374, 782964, 782964MA
Simplicity
668827, 668827SM
Snapper
1-8288, 7018288, 7018288YP
Toro
62-4530, 7-0823
FITS MODELS
Gravely
37896 and 885004-000/01, 40" commercial 2-wheel tractors
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 1/16"
C:
3/8"
D:
5/8"
E:
1/2"
F:
11/32"
H:
5/32"
Height
5/8"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 1/16"
Flat Idler 1716615SM
Add to cart
STE280-016
REPLACES OEM
Allis Chalmers
118414, 2029824
AYP
75673, 76557, 9178
FMC
172-9440
Lawn-Boy
607978, 740890
MTD
1909266, 756-0199
Murray
1502120MA, 313843, 313843GS, 46993, 50793, 50793MA
Simplicity
118414, 118414SM, 2118414, 2118414SM
Snapper
1716615, 1716615SM, 3-0948, 7010948
Toro
7-0056
Troy-Bilt
1720936, 1729440, 1751736, GW-1751736
FITS MODELS
Western Plow
Pro Flo1 Tailgate Spreader
SPECS
Double row of bearings with double sealed sides
For explanation of letters, refer to the drawing at top of page.
A:
2"
B:
1 7/8"
C:
3/8"
D:
3/4"
E:
1/2"
F:
11/32"
H:
1/16"
Height
7/8"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
2"
V:
7/8"
Flat Idler 7014340YP
Add to cart
STE280-024
REPLACES OEM
AYP
4702H, 66048
Simplicity
1657827, 1657827SM, 1685149, 1685149SM
Snapper
1-4340, 7014340, 7014340YP
Toro
12-6700, 25-5880, 54-9790
Troy-Bilt
1744090, 1754637, GW-1754637
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
2 1/2"
B:
2"
C:
3/8"
D:
13/16"
E:
3/4"
F:
11/32"
H:
3/16"
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
2 1/2"
V:
1"
Flat Idler 756-0515
Add to cart
STE280-099
REPLACES OEM
Allis Chalmers
108386, 2026357
AYP
61620
Cub Cadet
491395-R1
John Deere
24H1682, AM103018, AM41647, M41647
MTD
756-0515
Simplicity
108386, 108386SM, 2108386, 2108386SM
Troy-Bilt
1626-104, 1714742, 1724488, 756-0405, GW-1724488
FITS MODELS
John Deere
65, 66, 68, S80, S82 rear engine, 108, 112L, 116, 130, 160, 170, 185 and 240
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 3/4"
B:
3 1/4"
C:
3/8"
D:
7/16"
F:
1/4"
H:
3/16"
Height
15/16"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 3/4"
V:
Flat Idler 956-0217
Add to cart
STE280-065
REPLACES OEM
Allis Chalmers
1708030, 2026082, 2028960
Dixon
1751
FMC
171-3803
John Deere
AM102323, AM32705
Lawn-Boy
701070, 702815
MTD
098079, 1713803, 756-0217, 756-3054A, 956-0217, 956-3054
Murray
32753, 40223
Simplicity
154534, 154534SM, 156124, 156124SM, 1603515, 1603515SM, 1610191, 1610191SM, 2154534, 2154534SM, 2156124, 2156124SM
Snapper
1-4153, 7014153, 7014153YP
Troy-Bilt
1713803, 1820120, 756-3054A, 956-3054
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 1/4"
B:
2 3/4"
C:
3/8"
D:
7/8"
E:
5/8"
F:
5/8"
H:
1/8"
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 1/4"
V:
1"
Flat Idler AM103480
Add to cart
STE280-107
REPLACES OEM
Allis Chalmers
1685144, 2087950
AYP
9292H, 9492H
John Deere
AM103287, AM103480, AM108923, AM37321
Murray
13469, 32971, 46476, 46476MA, 6205
Simplicity
164268, 164268SM, 1685144, 1685144SM
Toro
43-1040
FITS MODELS
Gravely
Pro 150 series
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 9/16"
B:
3 1/4"
C:
3/8"
D:
1"
E:
5/8"
F:
5/8"
H:
1/16"
Height
1 3/16"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 9/16"
V:
1 3/16"
Heavy Duty Flat Idler 1606554SM
Add to cart
STE280-406
REPLACES OEM
Simplicity
1606554SM, 1607284
FITS MODELS
Simplicity
GTH-L, 7000 series, pre-1980 Landlord, pre-1980 Sovereign, 700 and 900 series and 1993 Sovereign
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4 3/8"
B:
4 1/8"
C:
3/8"
D:
1 1/16"
E:
5/16"
F:
5/16"
Heavy Duty
TRUE
Height
1 1/4"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
4 3/8"
V:
1 1/4"
Heavy Duty Flat Idler 1685144SM
Add to cart
STE280-420
REPLACES OEM
Simplicity
1603515, 1603515SM, 1685144, 1685144SM
SPECS
For explanation of letters, refer to the drawing at top of page.
Includes 1/2" ID reducer bushing
A:
3 5/8"
B:
3 1/4"
C:
3/8"
D:
7/8"
E:
7/32"
F:
1/4"
H:
5/16"
Heavy Duty
TRUE
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 5/8"
V:
7/8"
Heavy Duty Flat Idler 1685150SM
Add to cart
STE280-610
REPLACES OEM
Ferris
1665460, 1685150, 1685150SM
Simplicity
1685150, 1685150SM
Snapper
1685150, 1685150SM
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 3/4"
B:
3 1/8"
C:
3/8"
D:
1/2"
E:
5/16"
F:
5/16"
Heavy Duty
TRUE
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 3/4"
V:
1"
Heavy Duty Flat Idler 2108386SM
Add to cart
STE280-214
REPLACES OEM
Simplicity
108386, 108386SM, 2108386, 2108386SM
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 3/4"
B:
3 1/4"
C:
3/8"
D:
3/4"
E:
7/32"
F:
7/32"
Heavy Duty
TRUE
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 3/4"
V:
1"
Heavy Duty Flat Idler 2171247SM
Add to cart
STE280-354
REPLACES OEM
Simplicity
171247, 171247SM, 2171247, 2171247SM
Snapper
2171247, 2171247SM
FITS MODELS
Simplicity
5000 series with 42" deck
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
5"
B:
4"
C:
3/8"
D:
1/2"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
1 3/16"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
5"
V:
1 3/16"
Heavy Duty Flat Idler 5103800YP
Add to cart
STE280-491
REPLACES OEM
Ferris
1521976, 21976, 5021976, 5102831, 5103800, 5600184
Simplicity
5021976
Snapper
5021976, 5103800YP, 5600184, 5600184SM
FITS MODELS
Ferris
5900500, 5900708, 5900781, 5900783, 5900941, 5900943 and 5900993
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
6 3/4"
B:
5 7/8"
C:
1/2"
D:
1"
D:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
1 7/16"
ID
1/2"
Made By
An OEM Supplier
Material
Metal
OD
6 3/4"
V:
1 7/16"
Heavy Duty Flat Idler 5103817YP
Add to cart
STE280-473
REPLACES OEM
Ferris
5022621, 5103817
Simplicity
5022621
Snapper
5022621, 5022621SM, 5103817YP
FITS MODELS
Snapper
400z series and ZTR FastCut
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4 1/2"
B:
4"
C:
3/8"
D:
1/16"
E:
5/8"
F:
5/8"
H:
3/8"
Heavy Duty
TRUE
Height
1 5/16"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
4 1/2"
Heavy Duty Flat Idler 532177968
Add to cart
STE280-240
REPLACES OEM
Ariens
21546308
AYP
177968, 193197, 532177968
Dixon
532177968, 532193197
Husqvarna
532177968, 532193197
Snapper
705061, 708000
FITS MODELS
AYP
48" deck, 2001 and newer
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4"
B:
3"
C:
3/8"
D:
1 1/4"
E:
5/8"
F:
1/4"
H:
1/4"
Heavy Duty
TRUE
Height
1 7/16"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
4"
V:
1 7/16"
Heavy Duty Flat Idler 92-7104
Add to cart
STE280-222
REPLACES OEM
Simplicity
1685151, 1685151SM, 1708030, 1708030SM, 1726348, 1726348SM
Toro
105874, 92-7104
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 1/16"
B:
2 3/4"
C:
3/8"
D:
7/8"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
1"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 1/16"
V:
1"
