Murray
!

Flange Bushing
STE225-078
!
Larger picture
Replaces (OEM): AYP 3736R
MURRAY 403010
MURRAY 403010MA
NOMA 39980
Specs:
  • ID:3/4"
  • OD:1 1/8"
  • Height:3/4"
  • Flat on one side

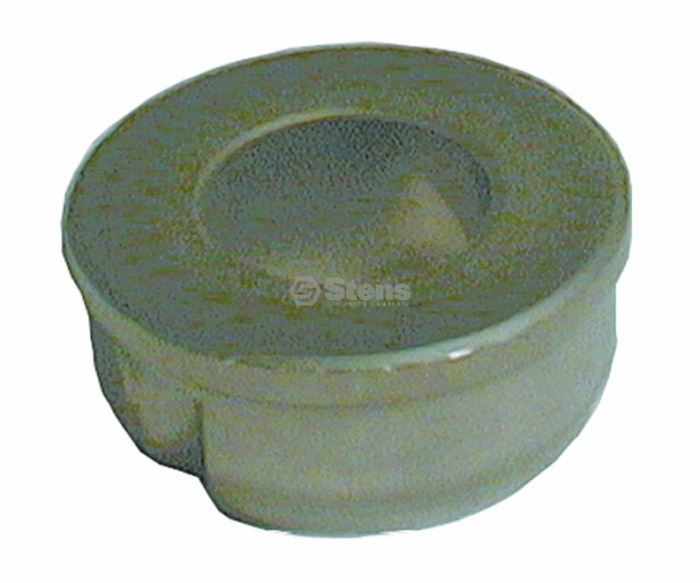

Flange Bushing
STE215-145
!
Larger picture
Replaces (OEM): AYP 625J
NOMA 39979
Fits Models: AYP BS1960AR, L1900BR, L1910AR, L1930BT, L1950BR,L1960AR and L1970AR, 1999 and older
NOMA 3189-0300 and 5290-2100, 32" cut decks
Specs:
  • ID:3/4"
  • OD:1 3/8"
  • Height:5/8"

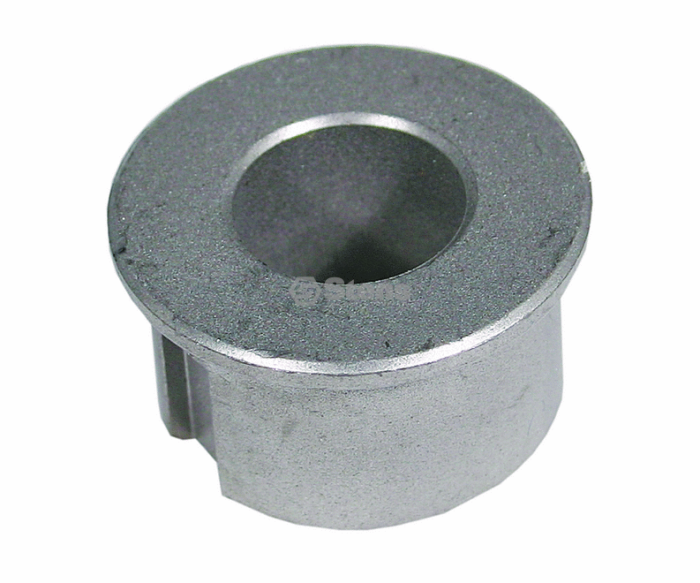

Flange Bushing
STE225-086
!
Larger picture
Replaces (OEM): AYP 64906
MURRAY 24615
Specs:
  • ID:5/8"
  • OD:1 1/8"
  • Height:3/4"
  • Flat on one side

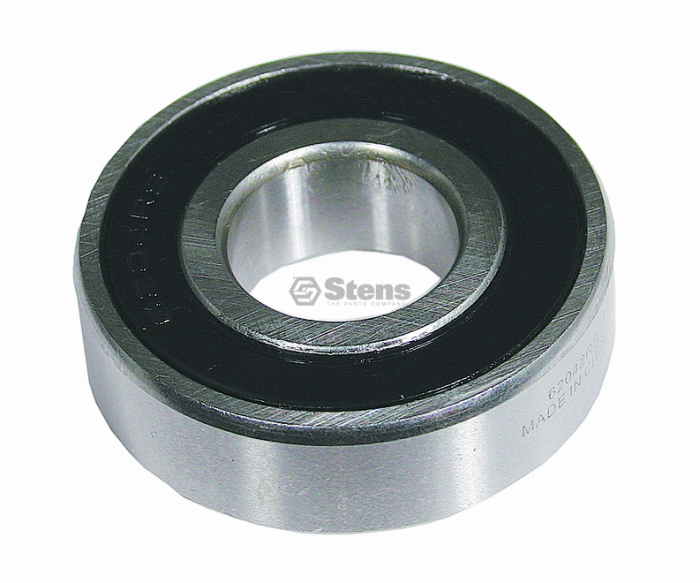

Spindle Bearing
STE230-029
!
Larger picture
Replaces (OEM): ALLIS CHALMERS 1652231
ARIENS 05412300
AYP 129895
BRIGGS & STRATTON 99158
CUB CADET ST207
CUB CADET SU-9001310-0001
HONDA 91102-VA4-013
HUSQVARNA 532 12 98-95
JOHN DEERE JD10363
JOHN DEERE JD7677
KUBOTA 08101-06204
LESCO 050384
MASSEY FERGUSON 350396X1
MASSEY FERGUSON N1568
MTD 741-0919
MTD 941-0919
MURRAY 55541
REF NO 6204-2RS
SIMPLICITY 118011
SIMPLICITY 2118011
SNAPPER 1-2828
SNAPPER 7012828
TORO 112-0377
TORO 251-297
TORO 251-8
TROY BILT 1185121
TROY BILT 1728255
Fits Models: AYP 917.270722, bottom bearing on spindle assembly
MTD 491, 831, 832 and 930 series snowthrowers
SNAPPER 60370 and 80499, 54" cut decks
Specs:
  • ID:.787"
  • OD:1.850"
  • Height:.551"
  • Honda code 3175999
Additional Information:
  • Fits our 285-464 Spindle Shaft
  • Fits our 285-456 Spindle Assembly

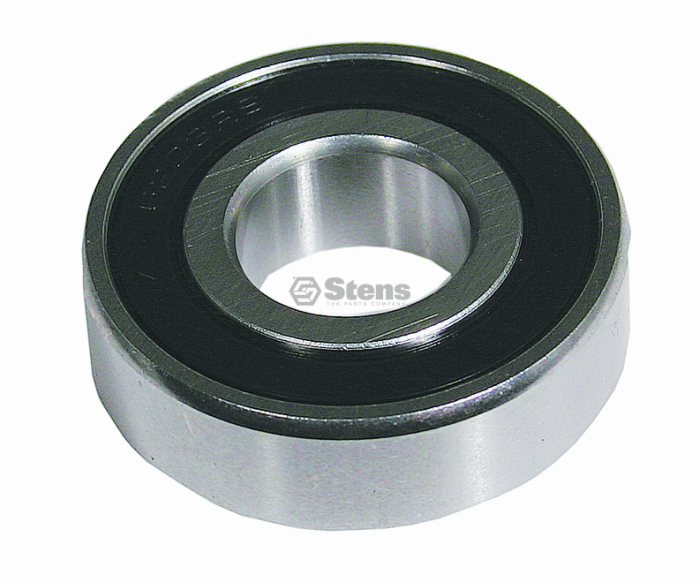

Spindle bearing
STE230-060
!
Larger picture

Replaces (OEM): ARIENS 05418800
AYP 110485
AYP 110485X
CUSHMAN 832498
DOLMAR 960 102 176
GILSON 236544
GREENFIELD GTO396
HUSQVARNA 532 11 04-85
JOHN DEERE JD8535
KING-O-LAWN 7192
LAWN-BOY 700479
LAWN-BOY 703275
MAKITA 960 102 176
MTD 741-0124
MTD 941-0124
MTD 941-0600
MURRAY 12325MA
MURRAY 1255MA
MURRAY 1501389MA
MURRAY 43846MA
MURRAY 49562MA
MURRAY 782973MA
NOMA 49562
REF NO 6203-2RS
SIMPLICITY 1666292
SIMPLICITY 1705897
SNAPPER 1-3020
SNAPPER 7013020
TORO 112-0423
TORO 38-7820
TROY BILT 1120502
TROY BILT 1185064
TROY BILT 941-0124
VICTA ME63217A
WACKER 0125686
Fits Models: ARIENS 93700 series snowthrowers
AYP 93700 series snowthrowers
DOLMAR PC-64XX, PC-73XX AND PC-81XX MODEL CUTOFF SAWS
JOHN DEERE LX172, LX173, LX176, LX178, LX186, LX188, GT242, GT262, GT275, Z TRAK
MAKITA DPC64XX, DPC73XX AND DPC81XX MODEL CUTOFF SAWS
MTD 074, 084, 114 and 314 series; spindle bearing
SEARS 917.270722; spindle bearing
TORO S-200, S-620 and CCR2000 snowthrowers
WACKER BTS930, BTS935, BTS1030 AND BTS1035 MODEL CUTOFF SAWS
Specs:
  • ID:.669"
  • OD:1.575"
  • Height:.475"
Additional Information:
  • Fits our 285-221 Spindle Assembly
  • Use with our 285-441 Spindle Housing
  • Fits our 285-464 Spindle Shaft
  • Fits our 285-456 Spindle Assembly

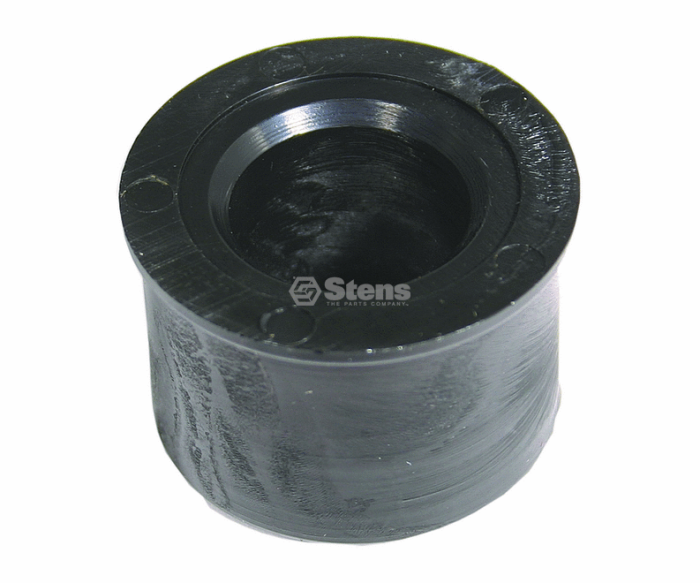

Wheel Bushing
STE225-029
!
Larger picture
Replaces (OEM): AYP 9040H
MURRAY 24367
MURRAY 491334
MURRAY 491334MA
MURRAY 91334
Fits Models: AYP 6A1A1E, 6C1A7E, 6H1A9D, AK12542C and AK125HR38A
MURRAY Riding mowers
Specs:
  • ID:3/4"
  • OD:1 3/8"
  • Height:1"
  • Plastic

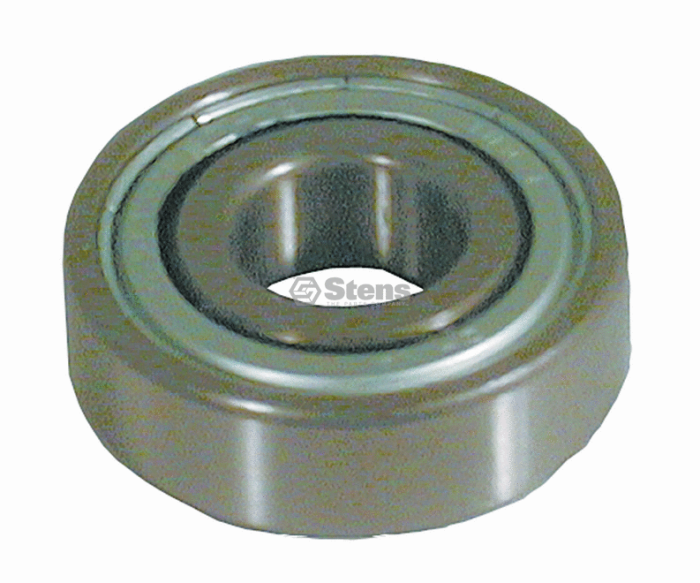

Spindle Bearing
STE230-015
!
Larger picture
Replaces (OEM): FERRIS 5020827
HUSQVARNA 532 11 04-85
MTD 941-0524
REF NO 6203-2RST-10
SCAG 48102
Specs:
  • ID:.625"
  • OD:1.575"
  • Height:.475"
  • Trash guard seals
Additional Information:
  • Fits our 285-332 Spindle Assembly

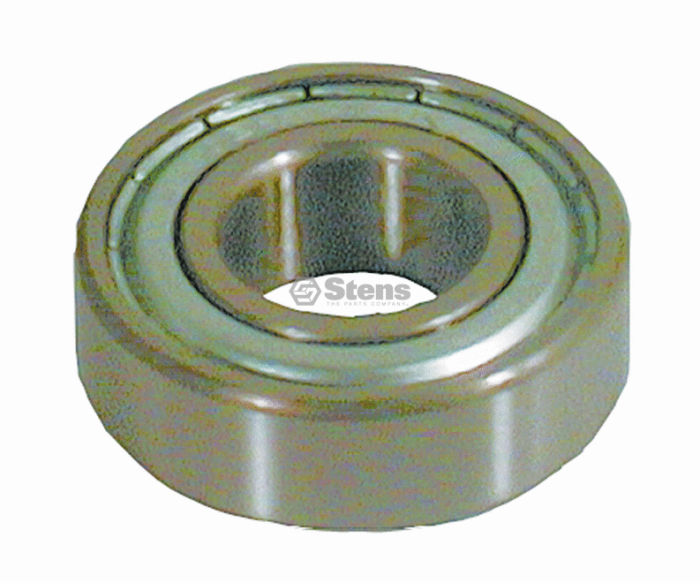

Spindle Bearing
STE230-019
!
Larger picture
Replaces (OEM): CUSHMAN 812899
DIXIE CHOPPER 67205
MTD 941-0155
REF NO 99502H-RST
SCAG 48224
SIMPLICITY 1665521
TROY BILT 1185169
WALKER 5037-1
Specs:
  • ID:625"
  • OD:1375"
  • Height:430"
  • Trash guard seal

Spindle Bearing
STE230-003
!
Larger picture

Replaces (OEM): ARIENS 05403900
ARIENS 05435100
BUNTON PL4969
CUSHMAN 812899
DIXIE CHOPPER 67205
HOFFCO 204906S
MCLANE 2036
MTD 741-0155
MTD 941-0155
REF NO 99502H
SCAG 48224
SIMPLICITY 1665521
TROY BILT 1185169
TROY BILT 941-0155
WALKER 5037-1
YAZOO 204-020
Fits Models: ARIENS 24" and 32" snowthrower attachments drive train
CUSHMAN Truckster
MTD 020, 030, 406, 430, 700, 719, 730, 740, 756 and 766 series
MURRAY Lawn edgers
SCAG Turf Tiger
YAZOO YR60 and YR76
Specs:
  • REF. NO.:99502H
  • ID:.625"
  • OD:1.375"
  • Height:.430"

Wheel bushing
STE215-565
!
Larger picture

Replaces (OEM): ARIENS 05505800
NOMA 40195
TROY BILT 1720327
TROY BILT 1750341
TROY BILT 1750341099
Fits Models: ARIENS 912001-912003 with spec. #000001, 26" Fairway
Specs:
  • ID:3/4"
  • OD:1 3/8"
  • Height:9/16"

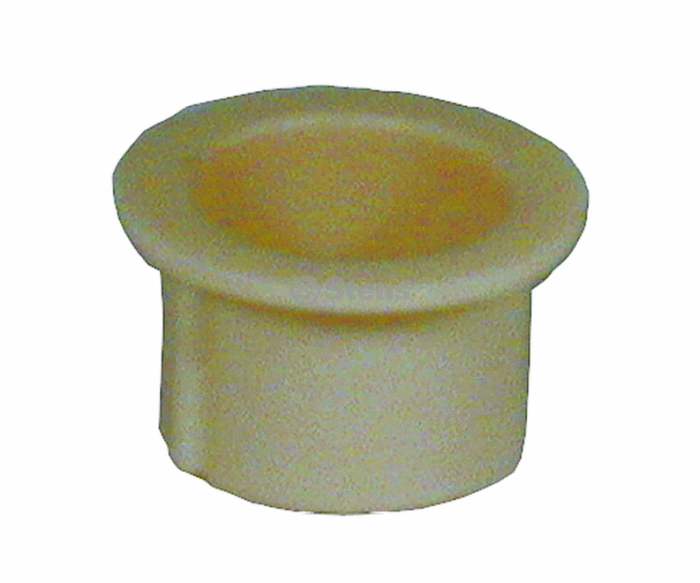

Flange Bushing
STE225-163
!
Larger picture
Replaces (OEM): MURRAY 90035
Specs:
  • ID:3/4"
  • OD:7/8"
  • Height:11/16"

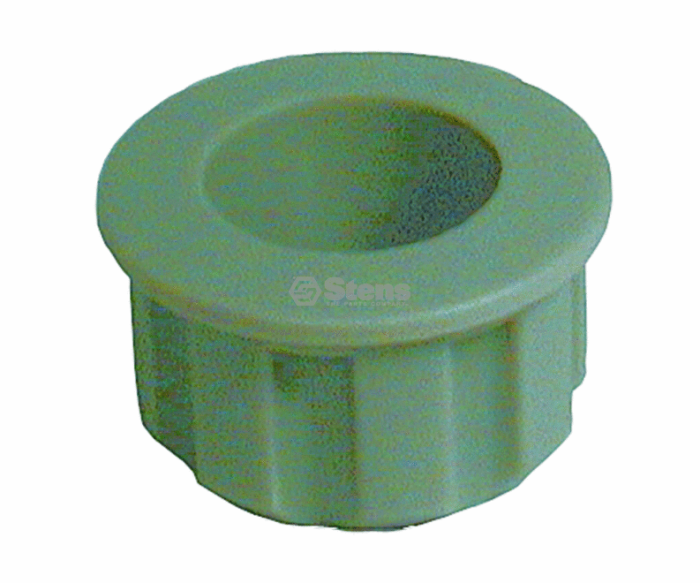

Wheel Bushing
STE215-305
!
Larger picture
Replaces (OEM): MURRAY 93064
Fits Models: MURRAY 46371X92A lawn and garden tractors, for 18 HPengines
Specs:
  • ID:7/8"
  • OD:1 3/8"
  • Height:7/8"
