Simplicity

Bearing

Add to cart
STE230-160
Replaces (OEM): ALLIS CHALMERS 536986
ARIENS 05407300
ARIENS 05412000
CASE C28971
CUB CADET 465003-R91
CUB CADET 470880-R91
CUB CADET IH-470880-R91
DIXON 539125515
DIXON 6011
HONDA 91102-VA4-003
JOHN DEERE JD9239
JOHN DEERE JD9296
LESCO 050371
NOMA 35384
REF NO DG1945B2RKACS41
REF NO P204RR6A4362
SIMPLICITY 108202
SIMPLICITY 2108202
SNAPPER 1-0696
SNAPPER 1-3313
SNAPPER 5-4073
SNAPPER 7013313
STEINER 55-29504AB
TORO 106947
TORO 109842
TORO 109842
TORO 251-351
TORO 31-0530
TRAIL MATE 11109
TROY BILT 1185574
TROY BILT 1185574P
TROY BILT 1185828
WALKER 5265
WOODS 05412000
WOODS 16106
YAZOO 204-060
Fits Models: YAZOO YR60 and YR76
Specs:
  • REF. NO.:DG1945B2RKACS41
  • ID:750"
  • OD:1.781"
  • Height:610"
  • Made by Koyo
  • Replaces 230-037 Timken bearing

Roller bearing 05406900

Add to cart
STE215-285
Replaces (OEM): ARIENS 05406900
CUSHMAN 814473
DIXIE CHOPPER 10207
EZ-GO 11750G2
EZ-GO 50892G1
FERRIS 20884
FERRIS 5020884
GILSON 1045
GRASSHOPPER 122552
JOHN DEERE JD8933
LAWN-BOY 254-94
LAWN-BOY 703210
REF NO L44643
SCAG 48005-05
SCAG 481896
SIMPLICITY 170835
SIMPLICITY 2170835
TAYLOR-DUNN 80-103-00
TORO 254-94
Fits Models: EZ-GO Front wheel bearing for carts with 1" spindle
FERRIS Front wheel bearing for carts with 1" spindle
GRASSHOPPER Front wheel bearing for carts with 1" spindle
JOHN DEERE 46"-50" snowthrowers; 51" rotary brooms; 303,305, 550 and 1500 tillers
SCAG New style spindles
TORO Reelmaster 223D and 5100D and Greensmaster 3,300, 3000 and 3100
Specs:
  • ID:1"
  • Height:.579"
  • Tapered cone
Additional Information:
  • Fits our 215-111 Bearing Race

Spindle Bearing

Add to cart
STE230-129
Replaces (OEM): ALLIS CHALMERS 1652231
ARIENS 05412300
AYP 129895
BRIGGS & STRATTON 99158
CUB CADET ST207
CUB CADET SU-9001310-0001
HONDA 91102-VA4-013
HUSQVARNA 532 12 98-95
JOHN DEERE JD10363
JOHN DEERE JD7677
KUBOTA 08101-06204
LESCO 050384
MASSEY FERGUSON 350396X1
MASSEY FERGUSON N1568
MTD 741-0919
MTD 941-0919
MURRAY 55541
REF NO 6204-2RS
SIMPLICITY 118011
SIMPLICITY 2118011
SNAPPER 1-2828
SNAPPER 7012828
TORO 112-0377
TORO 251-297
TORO 251-8
TROY BILT 1185121
TROY BILT 1728255
Fits Models: AYP 917.270722, bottom bearing on spindle assembly
MTD 491, 831, 832 and 930 series snowthrowers
SNAPPER 60370 and 80499, 54" cut decks
Specs:
  • ID:.787"
  • OD:1.850"
  • Height:.551"
  • Honda code 3175999
Additional Information:
  • Fits our 285-464 Spindle Shaft
  • Fits our 285-456 Spindle Assembly

Spindle bearing

Add to cart
STE230-033

Replaces (OEM): ALLIS CHALMERS 536986
ARIENS 05407300
ARIENS 05412000
CASE C28971
CUB CADET 465003-R91
CUB CADET 470880-R91
CUB CADET IH-470880-R91
DIXON 539125515
DIXON 6011
GRAVELY 011641
GRAVELY 35925
HONDA 91102-VA4-003
JOHN DEERE JD9239
JOHN DEERE JD9296
LESCO 050371
NOMA 35384
REF NO P204RR6
SIMPLICITY 108202
SIMPLICITY 2108202
SNAPPER 1-0696
SNAPPER 1-3313
SNAPPER 5-4073
SNAPPER 7013313
STEINER 55-29504AB
TORO 106947
TORO 109842
TORO 251-351
TORO 31-0530
TRAIL MATE 11109
TROY BILT 1185574
TROY BILT 1185574P
TROY BILT 1185828
WALKER 5265
WOODS 05412000
WOODS 16106
YAZOO 204-060
Fits Models: SNAPPER 30" two stage large frame snowthrowers and rear engine riders
TROY BILT 14000, 30042SR, 42" side discharge center mount; 14001, 51048SR, 48" side discharge mount;and 14002, 42" rear discharge center mount
YAZOO YR60, 76
Specs:
  • ID:750"
  • OD:1781"
  • Height:610"
  • Honda code 1688217



Additional Information:
  • Economy version of our 230-160 Bearing

Spindle bearing

Add to cart
STE230-260

Replaces (OEM): ARIENS 05418800
AYP 110485
AYP 110485X
CUSHMAN 832498
DOLMAR 960 102 176
GILSON 236544
GREENFIELD GTO396
HUSQVARNA 532 11 04-85
JOHN DEERE JD8535
KING-O-LAWN 7192
LAWN-BOY 700479
LAWN-BOY 703275
MAKITA 960 102 176
MTD 741-0124
MTD 941-0124
MTD 941-0600
MURRAY 12325MA
MURRAY 1255MA
MURRAY 1501389MA
MURRAY 43846MA
MURRAY 49562MA
MURRAY 782973MA
NOMA 49562
REF NO 6203-2RS
SIMPLICITY 1666292
SIMPLICITY 1705897
SNAPPER 1-3020
SNAPPER 7013020
TORO 112-0423
TORO 38-7820
TROY BILT 1120502
TROY BILT 1185064
TROY BILT 941-0124
VICTA ME63217A
WACKER 0125686
Fits Models: ARIENS 93700 series snowthrowers
AYP 93700 series snowthrowers
DOLMAR PC-64XX, PC-73XX AND PC-81XX MODEL CUTOFF SAWS
JOHN DEERE LX172, LX173, LX176, LX178, LX186, LX188, GT242, GT262, GT275, Z TRAK
MAKITA DPC64XX, DPC73XX AND DPC81XX MODEL CUTOFF SAWS
MTD 074, 084, 114 and 314 series; spindle bearing
SEARS 917.270722; spindle bearing
TORO S-200, S-620 and CCR2000 snowthrowers
WACKER BTS930, BTS935, BTS1030 AND BTS1035 MODEL CUTOFF SAWS
Specs:
  • ID:.669"
  • OD:1.575"
  • Height:.475"
Additional Information:
  • Fits our 285-221 Spindle Assembly
  • Use with our 285-441 Spindle Housing
  • Fits our 285-464 Spindle Shaft
  • Fits our 285-456 Spindle Assembly

Bearing 941-0155

Add to cart
STE230-103

Replaces (OEM): ARIENS 05403900
ARIENS 05435100
BUNTON PL4969
CUSHMAN 812899
DIXIE CHOPPER 67205
HOFFCO 204906S
MCLANE 2036
MTD 741-0155
MTD 941-0155
REF NO 99502H
SCAG 48224
SIMPLICITY 1665521
TROY BILT 1185169
TROY BILT 941-0155
WALKER 5037-1
YAZOO 204-020
Fits Models: ARIENS 24" and 32" snowthrower attachments drive train
CUSHMAN Truckster
MTD 020, 030, 406, 430, 700, 719, 730, 740, 756 and 766 series
MURRAY Lawn edgers
SCAG Turf Tiger
YAZOO YR60 and YR76
Specs:
  • REF. NO.:99502H
  • ID:.625"
  • OD:1.375"
  • Height:.430"

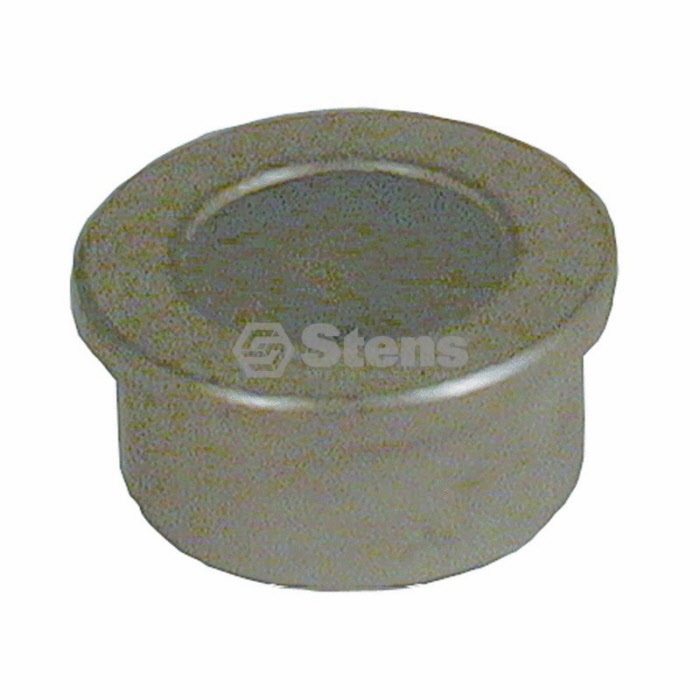

Wheel bushing

Add to cart
STE215-557

Replaces (OEM): ARIENS 05502800
JOHN DEERE C16522
JOHN DEERE CH18688
JOHN DEERE E16522
JOHN DEERE M41522
SIMPLICITY 156316
SIMPLICITY 2156316
Fits Models: ARIENS 12970-12995, with spec. #000001 Fairway
SIMPLICITY 3100, 4200, 5200 and 6500 riders
Specs:
  • ID:3/4"
  • OD:1 1/8"
  • Height:3/4"

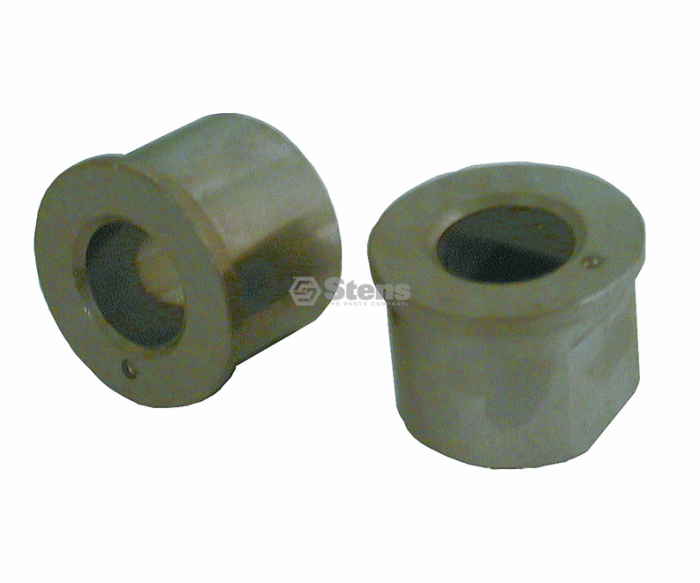

Wheel Bushing

Add to cart
STE225-818
Replaces (OEM):
  • SIMPLICITY: 1713167
  • SIMPLICITY: 1713167SM
    • Fits Models: SIMPLICITY Regent, Sports and Broadmoor series
    Specs:
    • Height: 1 1/8 "
    • ID: 3/4 "
    • OD: 1 3/8 "
    • Package of 2
    • Priced per pack, sold per pack
    • Steel /8"
