Woods

Bearing

Add to cart
STE230-160
Replaces (OEM): ALLIS CHALMERS 536986
ARIENS 05407300
ARIENS 05412000
CASE C28971
CUB CADET 465003-R91
CUB CADET 470880-R91
CUB CADET IH-470880-R91
DIXON 539125515
DIXON 6011
HONDA 91102-VA4-003
JOHN DEERE JD9239
JOHN DEERE JD9296
LESCO 050371
NOMA 35384
REF NO DG1945B2RKACS41
REF NO P204RR6A4362
SIMPLICITY 108202
SIMPLICITY 2108202
SNAPPER 1-0696
SNAPPER 1-3313
SNAPPER 5-4073
SNAPPER 7013313
STEINER 55-29504AB
TORO 106947
TORO 109842
TORO 109842
TORO 251-351
TORO 31-0530
TRAIL MATE 11109
TROY BILT 1185574
TROY BILT 1185574P
TROY BILT 1185828
WALKER 5265
WOODS 05412000
WOODS 16106
YAZOO 204-060
Fits Models: YAZOO YR60 and YR76
Specs:
  • REF. NO.:DG1945B2RKACS41
  • ID:750"
  • OD:1.781"
  • Height:610"
  • Made by Koyo
  • Replaces 230-037 Timken bearing

Bearing 741-0133

Add to cart
STE230-276
Replaces (OEM): ARIENS 05408000
HUSQVARNA 606 00 01-84
JOHN DEERE AM122108
MTD 741-0133
REF NO 1621-2RS
WOODS 05408000
Fits Models: ARIENS 824 snowthrowers
JOHN DEERE 524D, 724D, 826D, 828D and 1032D walk behindssnowthrowers
MTD 824, 840, 850 and 960 series
Specs:
  • ID:.500"
  • OD:1.375"
  • Height:.438"

Bearing race 05407000

Add to cart
STE215-285
Replaces (OEM): ARIENS 05407000
CUSHMAN 814474
DIXIE CHOPPER 10206
EZ-GO 51141-81
FERRIS 5020883
GILSON 1046
JOHN DEERE JD8253
LAWN-BOY 254-72
LAWN-BOY 703809
REF NO L44610
SCAG 48005-04
SCAG 481895
TAYLOR-DUNN 80-103-00
TORO 254-72
WOODS 003585
Fits Models: JOHN DEERE 303, 305 and 1500
SCAG New style spindles
TAYLOR-DUNN New style spindles
TORO Greensmaster 3, 300, 3000 and 3100, Reelmaster 223D and 5100D
Specs:
  • OD:1.980"
  • Height:.420"
Additional Information:
  • Fits our 215-103 Roller Bearing

Bearing with collar

Add to cart
STE225-317

Replaces (OEM): BOBCAT 38348-01
BUNTON PL7323
CUB CADET 455102-R21
CUB CADET 586609-R92
CUB CADET 60069C91
CUB CADET IH-455102-R21
CUB CADET IH-586609-R92
CUB CADET IH-60071-C91
CUB CADET IH-60071-C92
DIXON 1701
DIXON 539115279
GRASSHOPPER 120081
HUSQVARNA 539 10 26-77
HUSQVARNA 539 10 74-06
JOHN DEERE JD8597
REF NO CSA205-16
WALKER 5270
WOODS 60006
Fits Models: BOBCAT 36", 48" and 61" XM series
CUB CADET 100, 102, 122 and 123
GRASSHOPPER 9048, 52" and 61" decks
HUSQVARNA 9048, 52" and 61" decks
JOHN DEERE 300-317 hydrostatic tractors; M653-M655 Z Track
Specs:
  • ID:1"
  • OD:2.046"
  • Height:.839"
  • .533" HT collar
  • Includes 1 set screw

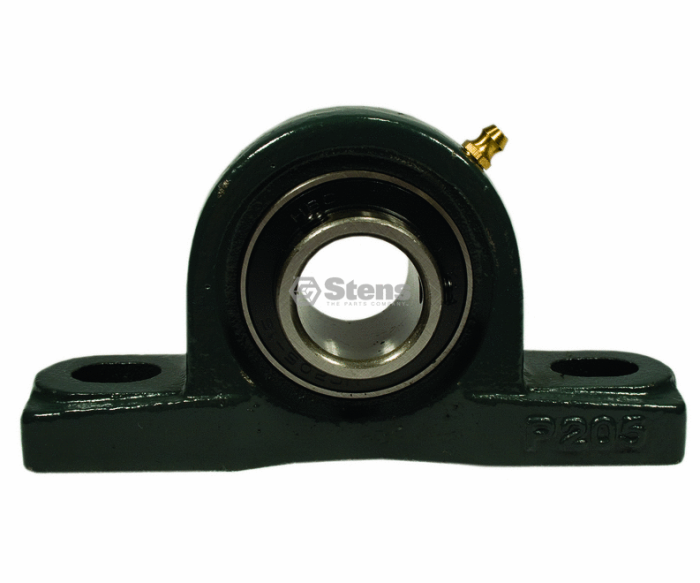

Pillow Block Bearing

Add to cart
STE230-437
Replaces (OEM): GRASSHOPPER 122043
GRASSHOPPER 122044
REF NO UPC205-16
WOODS 70345
Fits Models: GRASSHOPPER 700 and 900 series
WOODS 6180, 6182, 6200, 6210, 6215, 6250 and most mowing machines
Specs:
  • Length:5.50"
  • ID:1"
  • Height:2.75"
  • Two 17/32" x 3/4" mounting slots
  • 4 1/8" center to center
  • Includes grease zerk

Roller bearing set

Add to cart
STE215-350
Replaces (OEM): ARIENS 05404600
ARIENS 05404700
COLUMBIA 9045
COLUMBIA 9048
COLUMBIA 9049
CUSHMAN 320112
CUSHMAN 386767
JACOBSEN 500535
JOHN DEERE JD8187
JOHN DEERE JD8225
REF NO LM67010
REF NO LM67048
TAYLOR-DUNN 80-011-00
TAYLOR-DUNN 80-102-00
TROY BILT GW-11522
WOODS 2303
Fits Models: COLUMBIA Fork stem wheels
CUSHMAN Differential
JOHN DEERE 365, 855, 955, 2243, 3325 and 3365
TROY BILT Horse tillers
Specs:
  • ID:1.250" TAPERED CONE
  • OD:2.328" RACE
  • Height:657"
  • For tine shaft

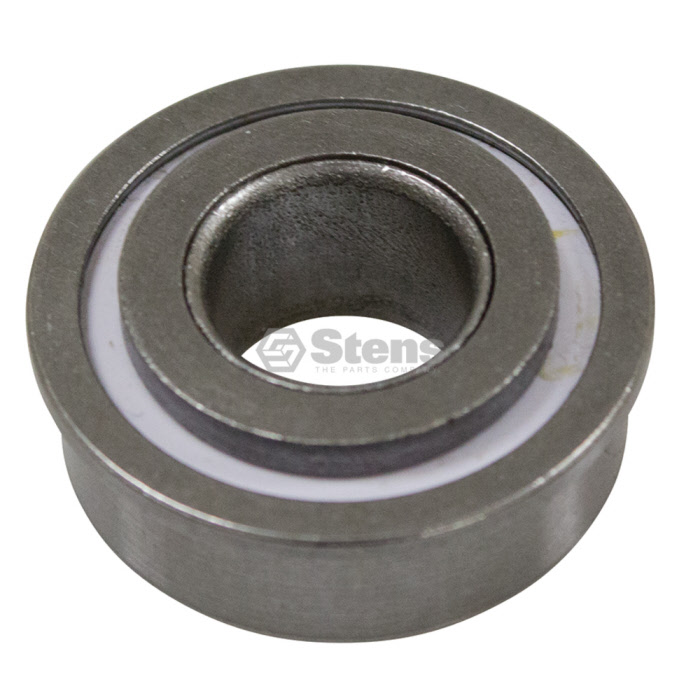

Wheel Bearing

Add to cart
STE215-370
Replaces (OEM): DIXIE CHOPPER 10205
GRASSHOPPER 120050
JOHN DEERE PT8894
MCLANE 2036
MTD 741-0569
MTD 941-0569
WALKER 5037
WALKER 5037-1
WOODS 70043
Fits Models: DIXIE CHOPPER 50" and 60" cut decks
GRASSHOPPER 6372, 9048, 9052 and 9061
JOHN DEERE PC2003 32"-52" commercial walk behinds
Specs:
  • ID:.625"
  • OD:1.381"
  • Height:.577"
Additional Information:
  • Fits our 175-681 Wheel Assembly
