Snapper

Belt and Drive Disc Kit

Add to cart
STE785-410

Replaces Snapper 1-0749 & 1-0765
Fits 25" thru 30" cut rear engine riders
Includes our STE240-394 drive disc
and our STE265-272 belt.
Made by an OEM supplier.



Belt and Drive Disc Kit

Add to cart
SER785-400
Replaces (OEM): SNAPPER 1-0765
SNAPPER 2-2252
SNAPPER 5-3103
SNAPPER 7010765
SNAPPER 7018782
SNAPPER 7022252
SNAPPER 7053103

Brake / Clutch Cable

Add to cart
STE285-445
Replaces Snapper 1-2425
Fits series 1-5, 25" - 30" cut models
For riders with 2 pedals
3 adjustment spacers included
51 - 3/4" L

Clutch Cable

Add to cart
7029913YP
Snapper 2-9913, 2-2451
Fits rear engine rider models 250814B
and 25014BE series 14 and 258015BE
series 15.
49 1/2" conduit length.

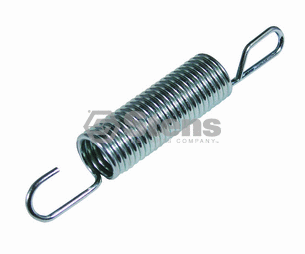

Clutch Spring

Add to cart
STE285-544

Replaces Snapper 1-2122
Fits self-propelled walk behind mowers
Adjustable in length from 4 1/2" - 5 5/8"
1 3/4" coil length.



Drive Disc 00170800

Add to cart
STE240-394
Replaces (OEM): ARIENS 00170800
ARIENS 00300300
CASE C22891
GILSON 18915
GILSON 32222
JACOBSEN 158458
JOHN DEERE AM122115
LAWN-BOY 741316
LESCO 050559
MURRAY 35550
SNAPPER 1-0765
SNAPPER 7010765
SNAPPER 7018782
TROY BILT 1720859
Fits Models: ARIENS ST824DLE, ST928LE, ST1024, ST1028 and ST1132
TROY BILT 42010, 42012, 42033, 42034, 42036, 42039, 42040 and 42041 self-propelled mowers; 42051 and42052 snowthrowers
  3" ID x 6" OD
  Made by an OEM supplier


Drive Disc 7017226

Add to cart
STE240-250
Replaces (OEM): SNAPPER 1-7226
SNAPPER 7017226
TORO 37-6570
Fits Models: SNAPPER 30" cut Estate walk behind mowers and snowthrowers
TORO 30" cut Estate walk behind mowers and snowthrowers

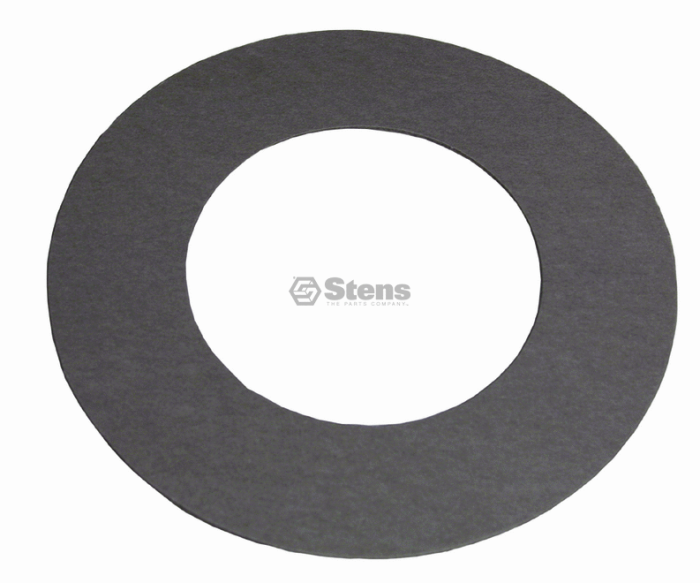

Drive Disc Gasket 1-4523

Add to cart
STE485-585

Replaces (OEM): SNAPPER 1-4523
SNAPPER 7014523
Specs:
  • ID:2 13/16"
  • OD:5"
  • Use for smooth clutch assembly on series 6 and higher

Drive Disc Lining

Add to cart
STE240-325
Replaces (OEM): SNAPPER 5-3103
SNAPPER 5-7423
SNAPPER 7053103
Specs:
  • Pre-formed for easy installation
  • Lining by itself not available from Snapper
  • Presses into back of drive disc
  • Will perform equally well with either side in disc
Additional Information:
  • Use with our 240-394 DrIve Disc

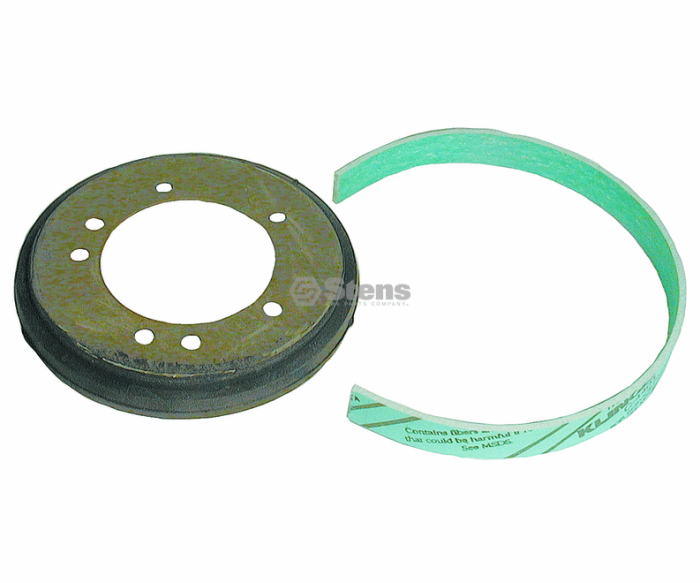

Drive Disc Kit

Add to cart
STE240-975
Replaces (OEM): SNAPPER 5-3103
SNAPPER 5-7423
SNAPPER 7053103
Specs:
  • Includes lining for models with smooth clutch
Additional Information:
  • Includes 240-325 Drive Disc Lining
  • Includes 240-394 Drive Disc

Drive Hub Assembly

Add to cart
STE240-440
Replaces Snapper 5-7444 & 5-3225
Fits self propelled walk behind models
U.S. made heavy-duty bearing
Drive ring made by an OEM supplier

Drive Plate

Add to cart
STE240-671
Replaces Snapper
  • SNAPPER: 6-0710
  • SNAPPER: 6-1275
  • SNAPPER: 7061275
  • SNAPPER: 7073528
    Fits self propelled models.

    • Drive Ring

    Add to cart
    STE240-275
    Replaces Snapper 1-0927 & 2-3364
    Fits self-propelled mowers
    3" ID x 4" OD
    Made by an OEM supplier

    Hex Shaft

    Add to cart
    STE240-048

    Replaces Snapper 2-1745 & 2-3744
    Fits self-propelled walk behind models
    1/2" W across flats
    3/8" - 24 UNF thread
    9/16" thread length
    8 1/4" overall length
    6 13/16" hex length



    Left Hand Wheel Hub

    Add to cart
    STE285-783
    Replaces Snapper 4-0434
    Fits left hand axle
    For 25" thru 41" cut rear engine riders
    3 bolt triangle style
    3/4" ID hub
    1/2" - 20 THD for wheel bolts
