MTD

We have OEM MTD PTO clutches available for all models.  If you don't see yours listed, please call us toll free at 877-381-5004.

Electric PTO Clutch 5215-59

Add to cart
STE255-547

DESCRIPTION
Xtreme Electric PTO Clutch
Xtreme X0185
REPLACES OEM:
AYP: 16343, 19982, 53679
Bolens: 717-0983, 717-3497, 917-0983, 917-3497
Case: 990947
Craftsman: 16343, 1703816SM, 19982, 53679, 7016343, 7053679, 717-0983, 717-3497, 917-0983, 917-3497
Cub Cadet: 717-0983, 717-3497, 917-0983, 917-3497
Jacobsen: 990947
MTD: 717-0983, 717-3497, 917-0983, 917-3497
New Holland: 990947
Simplicity: 1703816, 1703816SM, 71703816
Snapper: 16343, 19982, 53679, 7016343, 7053679, 7053679yp
Toro: 11346, 99-8012
Troy-Bilt: 717-3036, 717-3497, 917-3497, 959-3230
Warner: 5210-33, 5215-59
White: 717-0983, 717-3497, 917-0983, 917-3497
Xtreme: X0185
FITS MODELS:
Bolens: FST14, FST15, LR13, LT14, LT145, LT15, LT16 and LT165
Simplicity: 1613G, 1615G, 1613H, 1615H, 1616H, 2614H, 2616H, Broadmoor, LT, LTG and LTH series
Snapper: GT180, GYT, HT, LT, RYT, YT, PL7H and PP7H series
SPECS:
ID: 1"
Diameter Pulley: 5 5/16"
Direction: Counter clockwise
Uses belt width: 1/2" or 5/8"
Installation: To prevent premature clutch failure, follow the instruction sheet included with the clutch
Cool Coil Technology
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
Integrated Water Tight Wire Harness


Electric PTO Clutch 5215-68

Add to cart
STE255-347
DESCRIPTION
Xtreme Electric PTO Clutch
Xtreme X0188
REPLACES OEM:
Craftsman: 717-3389, 717-3389P, 917-3389
Cub Cadet: 01000725, 717-3375, 717-3384, 717-3389, 717-3389P, 917-3384, 917-3389
MTD: 01000725, 717-3375, 717-3389, 717-3389P, 917-3389
Troy-Bilt: 01000725, 717-3375, 717-3389, 717-3389P, 917-3389
Warner: 5210-30, 5215-68
White: 717-3375, 717-3389, 717-3389P, 917-3389
Xtreme: X0188
FITS MODELS:
Cub Cadet: Z-16, Z-180, Z-200, Z-220, ZT2150 and ZT-2250
MTD: MMZ-1848
SPECS:
ID: 1"
Diameter Pulley: 6 1/16"
Direction: Counter clockwise
Uses belt width: 1/2" or 5/8"
Installation: To prevent premature clutch failure, follow the instruction sheet included with the clutch
Cool Coil Technology
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
Integrated Water Tight Wire Harness

Electric PTO Clutch 5215-129

Add to cart
STE255-539

Replaces (OEM): MTD 717-1708
MTD 917-1708
SNAPPER 7-4022
SNAPPER 7074022
WARNER 5215-129
Fits Models: MTD 13AD604G401, 13AD624G401, 13AD624G401 and13AF607G352
ID: 1"
Height: 3 1/2"
Diameter Pulley: 5 3/8"
Direction: Counterclockwise
Uses belt width: 1/2"
  Made by an OEM supplier

Electric PTO Clutch 5215-130

Add to cart
STE255-543
REPLACES OEM:
Cub Cadet: 717-1709, 917-1709,
MTD: 717-1709, 917-1709,
Troy-Bilt: 717-1709, 917-1709,
Warner: 5215-130,
FITS MODELS:
SPECS:
ID: 1"
Height: 4"
Diameter Pulley: 5 3/8"
Direction: Counter clockwise
Uses belt width: 1/2"
Designed For: Rugged use
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Clutch Applications: Residential and commercial
Torque Correctly: To prevent premature failure

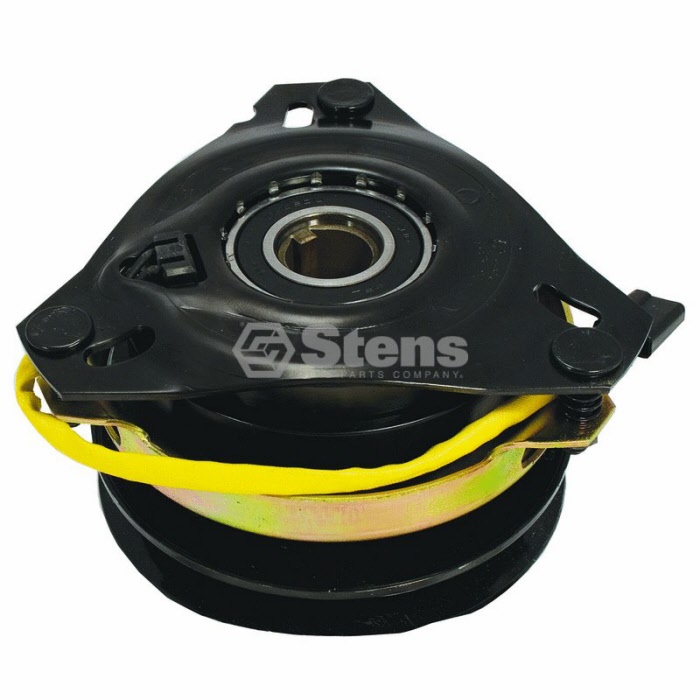

Electric PTO Clutch 5215-142

Add to cart
STE255-475

Replaces (OEM): MTD 717-04080
MTD 917-04080
WARNER 5215-142
Fits Models: MTD 42" and 46" Ranch King, Yardman and Yard Machine
ID: 1"
Height: 4 7/16"
Diameter Pulley: 6"
Direction: Counterclockwise
Uses belt width: 1/2" OR 5/8"
Origin: U.S. Made

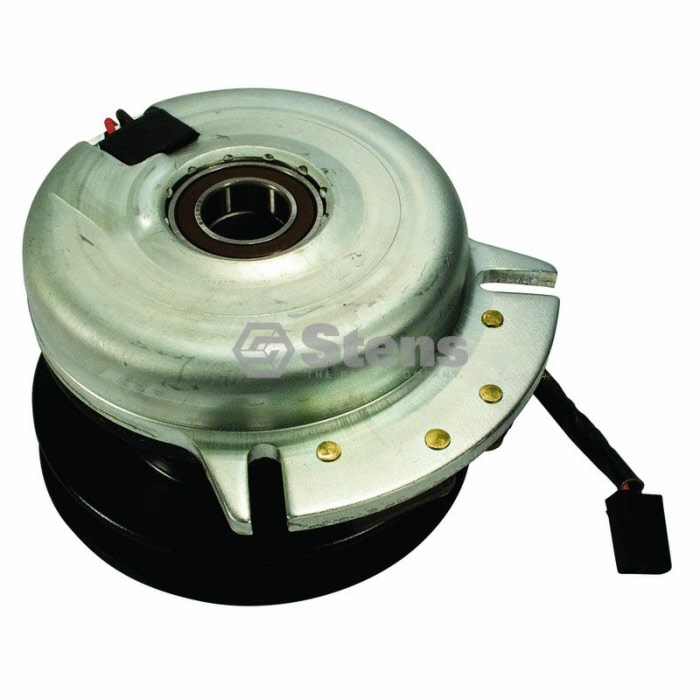

Electric PTO Clutch 5217-32

Add to cart
STE255-285

REPLACES OEM:
Cub Cadet: 717-04163, 917-04163, 917-04163A,
Massey Ferguson: 917-04163A,
MTD: 717-04163, 717-04163A, 917-04163, 917-04163A,
Troy-Bilt: 717-04163, 717-04163A, 917-04163, 917-04163A,
Warner: 5217-32, 5217-43,
FITS MODELS:
Cub Cadet: LT1042
SPECS:
ID: 1"
Height: 4"
Diameter Pulley: 6"
Direction: Counter clockwise
Uses belt width: 1/2 OR 5/8"
Designed For: Rugged use
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Clutch Applications: Residential and commercial
Torque Correctly: To prevent premature failure

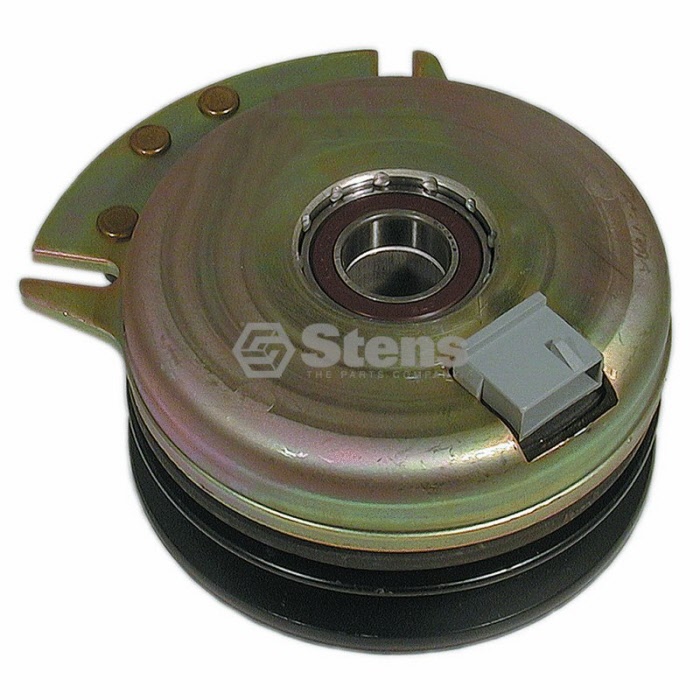

Electric PTO Clutch 5217-35

Add to cart
STE522-511
REPLACES OEM:
Ariens: 03643100,
AYP: 160889, 532160889, 53740,
Bolens: 1772388, GW-1772388,
Cub Cadet: 1772388, 717-1459, 917-1459, GW-1772388,
Dixon: 160889, 532160889,
Exmark: 104-3334,
Gravely: 03643100,
Husqvarna: 532160889,
John Deere: AM119683,
Jonsered: 160889, 532160889,
Kees: 160889,
MTD: 1772388, 717-1459, 917-1459,
Snapper: 5-3740, 7053740,
Swisher: 688EC,
Toro: 104-3334,
Troy-Bilt: 1772388, 717-1459, 917-1459,
Warner: 5217-35, 5217-6, 5217-9,
Woods: 03643100,
FITS MODELS:
SPECS:
ID: 1"
Height: 3"
Diameter Pulley: 5 3/8"
Direction: Counter clockwise
Uses belt width: 1/2" or 5/8"
Designed For: Rugged use
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Clutch Applications: Residential and commercial
Torque Correctly: To prevent premature failure

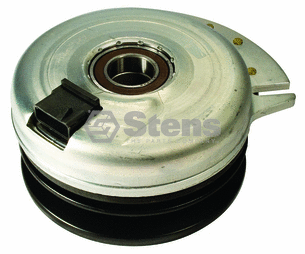

Electric PTO Clutch 5217-42

Add to cart
STE255-293

Replaces (OEM): CUB CADET 717-3385A
CUB CADET 917-3385A
MTD 717-3385A
MTD 917-3385A
WARNER 5217-42
Fits Models: CUB CADET 2000 SERIES, 2130,2135,2143,2150,2155,2165,GT2542

1" Shaft size, 5.345" Pulley

Electric PTO Clutch 5219-25

Add to cart
STE255-297
Replaces (OEM): CUB CADET 717-1774C
CUB CADET 917-1774C
MTD 717-1774C
MTD 917-1774C
WARNER 5219-25
Fits Models: CUB CADET RZT54,GT1554,SLT1554,LT1024

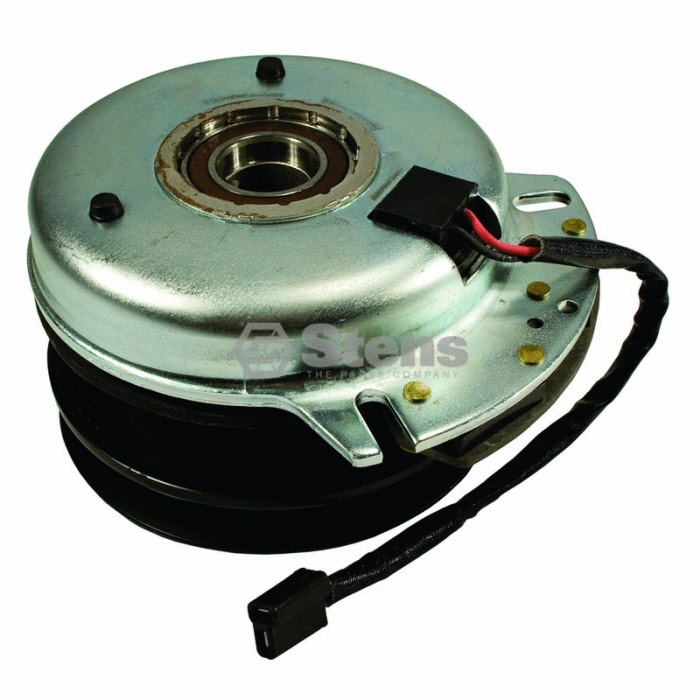

Electric PTO Clutch 5219-64

Add to cart
STE255-289
REPLACES OEM:
Cub Cadet: 717-04174, 717-04174A, 917-04174, 917-04174A,
MTD: 717-04174, 717-04174A, 917-04174, 917-04174A,
Troy-Bilt: 717-04174, 717-04174A, 917-04174,
Warner: 5219-51, 5219-79, 5219-64
FITS MODELS:
SPECS:
ID: 1"
Height: 4 1/4"
Diameter Pulley: 6"
Direction: Counter clockwise
Uses belt width: 5/8"
Designed For: Rugged use
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Clutch Applications: Residential and commercial

Electric PTO Clutch 5219-79

Add to cart
STE255-289

Replaces (OEM): CUB CADET 717-04174A
CUB CADET 917-04174A
MTD 717-04174A
MTD 917-04174A
WARNER 5219-51
WARNER 5219-79
Fits Models: CUB CADET LT1042, I1046, I1050, SLT1550, SLT1554, LT1045, LT1046 and LT1050

1" ID, 6" Pulley

Electric PTO Clutch 5219-98

Add to cart
STE255-839
Replaces OEM:
  • CUB CADET: 717-04552
  • CUB CADET: 917-04552
  • CUB CADET: 917-04552A
  • Internal - Stens: 255839
  • MTD: 717-04552
  • MTD: 917-04552A
  • WARNER: 5219-98
Fits Models:
Specs:
  • Height: 4 "
  • ID: 1 "
  • Diameter Pulley: 6 "
  • Direction: Counter clockwise
  • Uses belt width: 1/2 " OR 5/8"
  • Made by an OEM supplier
  • For proper ordering, reference Warner or Ogura part number stamped on clutch
  • Adjustment and maintenance free
  • Designed for rugged use
  • Residential and commercial applications
  • Torque correctly to prevent premature failure

Electric PTO Clutch 5219-133

Add to cart
STE255-853
255-853
REPLACES OEM:
MTD: 717-04326, 717-04326A, 917-04326, 917-04326A,
Warner: 5219-133,
FITS MODELS:
SPECS:
ID: 1"
Height: 3 1/4"
Diameter Pulley: 5 1/2"
Direction: Counter clockwise
Uses belt width: 1/2" or 5/8"
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Torque Correctly: To prevent premature failure

Electric PTO Clutch 5219-147

Add to cart
STE255-855
255-855

Electric PTO Clutch 5219-148

Add to cart
STE255-857
255-857
REPLACES OEM:
Cub Cadet: 717-05123, 717-05123A, 917-05123, 917-05123A,
MTD: 717-05123, 717-05123A, 917-05123, 917-05123A,
Warner: 5219-148,
FITS MODELS:
SPECS:
ID: 1"
Height: 3 15/16"
Diameter Pulley: 6"
Direction: Counter clockwise
Uses belt width: 1/2" or 5/8"
Designed For: Rugged use
For Proper Ordering: Reference Warner or Ogura part numbers stamped on clutch
Made By: An OEM supplier
Clutch Applications: Residential and commercial
Torque Correctly: To prevent premature failure
