Ryobi (Ryan)
!

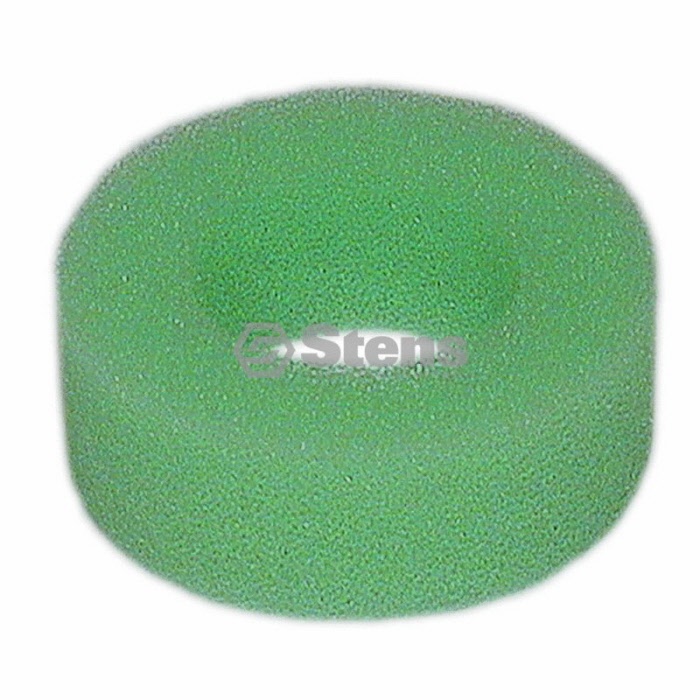

Air Filter 180350

STE100-139
!
Larger picture
Replaces (OEM): RYOBI 180350
Fits Models: RYOBI blower model GBV28, trimmer models 780RE and790R and Walbro 125-48
ID: 1 1/4"
OD: 2 1/4"
Height: 7/8"
  Foam air filter

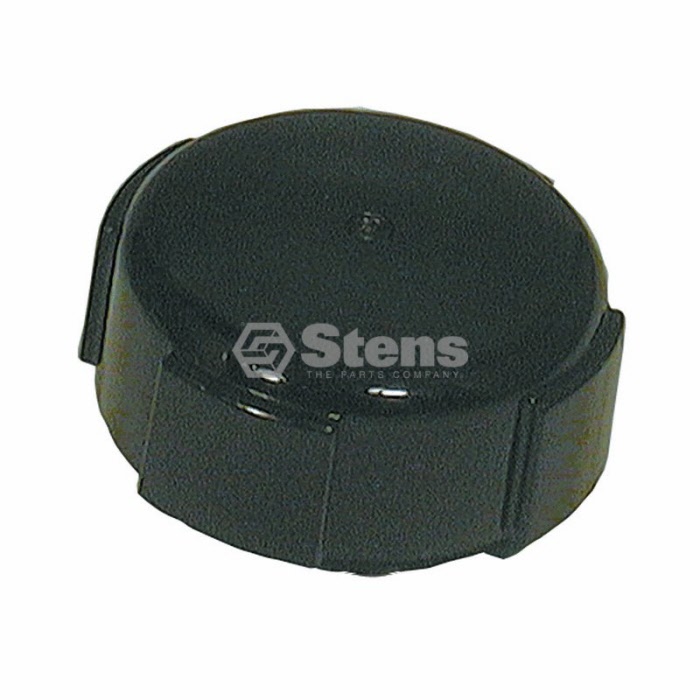

Bump head knob

STE385-904
!
Larger picture

Replaces Ryobi 180814 & 147496

Fits IDC models 395, 580-780

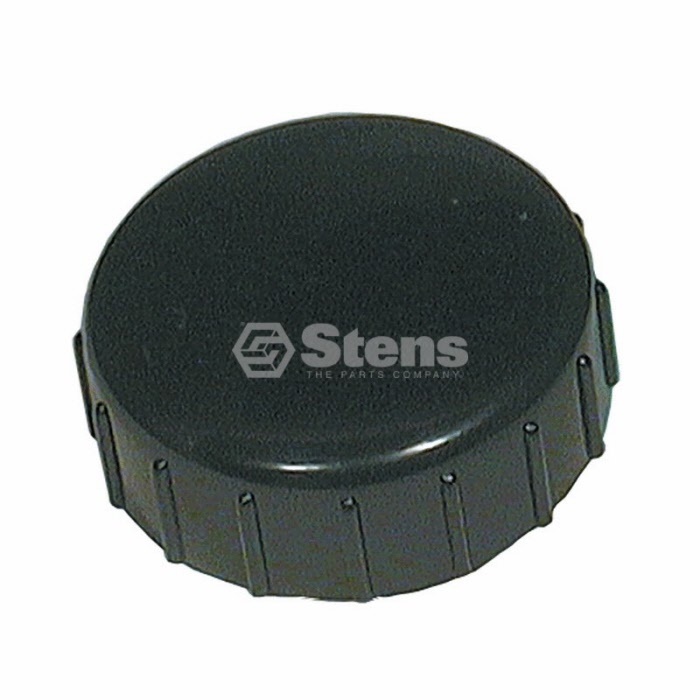

Bump knob

STE385-906
!
Larger picture

Replaces (OEM): LAWN-BOY 153066
LAWN-BOY 682069
MTD 791-153066
MTD 791-153066B
RYOBI 153066
RYOBI 153066R
SNAPPER 4-2076
SNAPPER 68049
SNAPPER 7068049
Fits Models: RYOBI Y28, Y700, 2800R, 700R, 720R, 740R, 750R, 766R, 768R, 770R, 970 and most Ryobi, Yard Machines and Yard Man curve-shaft trimmers
YARD MACHINES Y28 and 2800M
  1 3/4" OD
  5/16"-18 THD

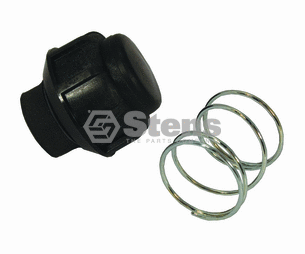

Bump Knob and Spring Assembly

STE385-451
!

Replaces Ryobi 181468

For Ryobi trimmer

Clutch Drum

ORE55-184
!
Larger picture
Replaces
Homelite & Ryobi #DP153592

Fuel Line with Filter

STE120-392
!
Larger picture

Replaces (OEM): RYOBI 682039
  1/8" ID fuel line
  Not compatible and warranty void with equipment using greater than 10% ethanol-blend fuel

Inner Spool

STE385-356
!
Larger picture

Replaces Ryobi 153577 & Toro 88192

For model 130R, 135R, 700R, 710R, 720R, 740R,
760R, 764R, 770R, 790R, 960R and Singer models
GR2815, GTS2816 and GTE2818.

Fits dual line feed models, includes 25' of .080"
trimmer line.

OD:  3-11/64" x ID:  3/8"  ID x HT:  1-5/32"

Outer Body, Trimmer Head

ORE55-179
!

Replaces 153619

For Ryobi trimmer models 130R, 135R, 700R, 710R,
720R, 740R, 750R, 760R, 765R, 766R, 768R, 770R,
920R, 960R, 970R.

Also fits Singer models GT2815, GFS2816 and GTE2818.

Also fits Sears Weedwacker models 71-51315, 71-51716,
71-51715, and 71-51425.

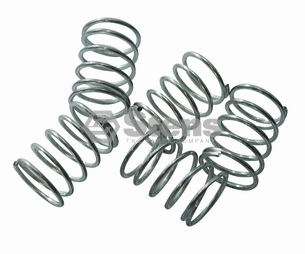

Spring

STE390-295
!
Larger picture

Replaces Ryan 610317 and Snapper 4-2074

13/16 x 1-3/16"

Fits Red Max, Snapper, Ryobi, Ryan, & IDC

Starter pulley

STE150-254
!
Larger picture

Replaces (OEM): RYOBI 683856
Fits Models: RYOBI Ryobi 265 and 365 SSR 284-3, 264-3, andLawn-Boy 1150, 1400CL and 1480
ID: 5/8"
OD: 2 3/4"
Height: 7/8"
  6 tooth sprocket

Starter pulley

STE150-262
!
Larger picture

Replaces (OEM): GREEN MACHINE 167304
RYOBI 682030
SNAPPER 4-2005
SNAPPER 7042005
Fits Models: RYOBI Lawn Boy 3100, 3130, 3160, 1300, SSI, SSII1400, 1460 and 1100
SNAPPER 310 and 311
ID: 5/8"
OD Top: 2 3/4"
OD Bottom: 2 9/16"
  6 tooth sprocket

Starter Spring

STE155-515
!
Larger picture
Replaces (OEM): GB GB34008
LAWN-BOY 610302
LAWN-BOY 613102
MCCULLOCH 83078
RYOBI 610302
RYOBI 613102
STIHL 4130 195 1600
Fits Models: LAWN-BOY Trimmers with engines under 31cc
MCCULLOCH Mac 110, thru Mac 140, Mini-Mac 6, Mini-Mac 25, Mini-Mac 30, Mini-Mac 35, Power Mac 6, ProMac 55, Pro Mac 510, Super Pro 40, Super Pro310 thru Super Pro 340 and Titan 7 chainsaws
RYOBI Engines under 31cc (also fits ICD and Ryan)
STIHL FS36, FS40 and FS44

Trimmer Head

STE890-244
!
Larger picture
Fits Models: UNIVERSAL Homelite, Ryobi, MTD and McCulloch
Specs:
  • Includes 5/16" right hand thread, 5/16" left hand thread and 1/4" right thread knobs
Additional Information:
  • Uses our 390-294 Trimmer Head Spring

Trimmer Head

STE385-178
!
Larger picture
Fits Models: RYOBI 130R, 135R electric trimmers, 700R, 710R720R, 740R, 750R, 760R, 765R, 766R, 770R920R, 970R, CS720R and SS720R
YARD MACHINES Y28 and 2800M
  For 3/8" shaft diameter
  For dual line models
  Does not include trimmer line
