Deck Parts 48"

Use diagram numbers to locate items listed below.

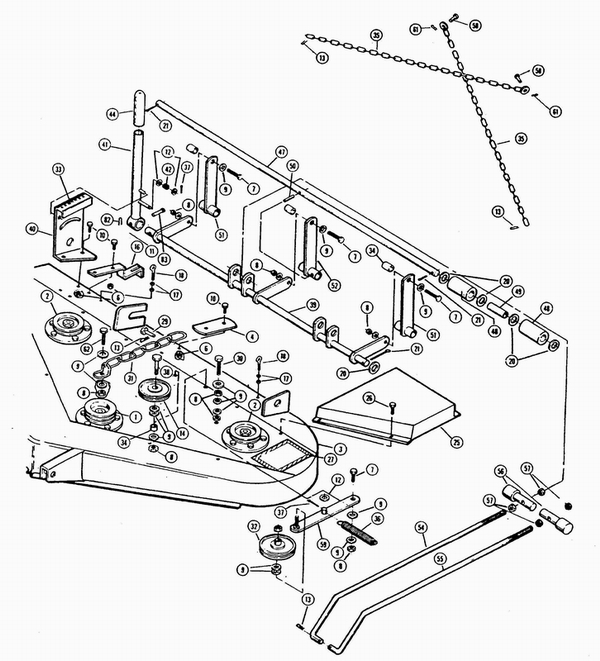

Product Diagram

Click on image to enlarge.

Item #1

Add to cart
60-0209
Spindle- Assembly, Center, 2-Groove

Item #2

Add to cart
60-0208
Spindle- Assembly, Side, 1-Groove

Item #4

Add to cart
60-6302
Plate- Backup, 1/4" x 1" x 3-1/16"

Item #5

Add to cart
84-2020
Screw- 5/16" NC x 7/8" HHC

Item #6

Add to cart
84-0100
Nut- Lock, 5/16" NF, Hex (Thru 1990)

Item #6

Add to cart
84-0101
Nut- Lock, 5/16" NC (From 1991)

Item #7

Add to cart
84-2120
Screw- 3/8" NF x 1-1/4" HHC

Item #8

Add to cart
84-0110
Nut- Lock, 3/8" NF, Hex

Item #9

Add to cart
84-3037
Washer- Flat, 3/8"

Item #10

Add to cart
84-2040
Screw- 5/16" NF x 1" HHC (Thru 1990)

Item #12

Add to cart
84-3012
Washer- Flat, 5/16" SAE

Item #13

Add to cart
84-4032
Key- Quick Change #11, Small

Item #16

Add to cart
60-0517
Bracket- Roller Support Guide

Item #17

Add to cart
84-0040
Nut- Lock, 3/8" NC
