5-1.10
Hitch 1990, # 60051 & 60053

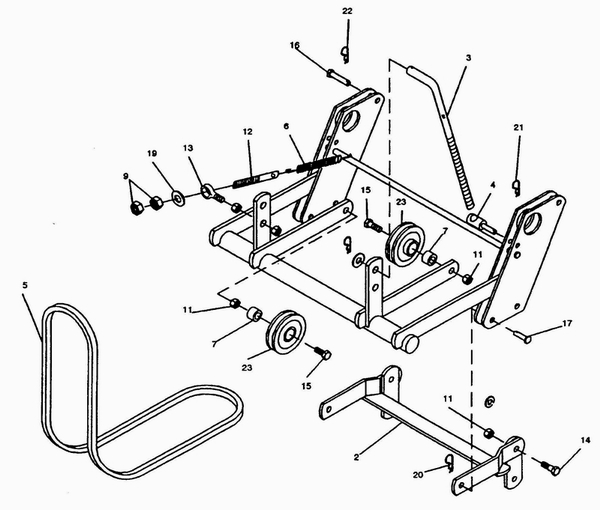

Use diagram numbers to locate items listed below.

!

Click On Image To Enlarge
!
Larger picture

Item #1
60-2911
!
Weldment- Mower Hitch (1600 Series)

Item #(1)
60-2912
!
Weldment- Mower Hitch (2400 Series)

Item #2
60-4708
!

Weldment- Drag Link

Item #3
60-6700
!
Rod- Angle Adjust, 3/8" Dia. x 10" Long

Replaced by 100403
100403
!

Trunnion- (Replaced By Kit #100143 In 1991)

Item #5
81-0089
!

HI-POWER BELT- Drive, (1600Series)

Item #(5)
81-0094
!

HI-POWER BELT- Drive  (2400 Series)

Item #6
83-0005
!
Spring- Tension, 5" Long

Item #7
83-1024
!
Spacer- 3/8" i.d. x 5/8" o.d. x 7/8" Long ( Replaced By Two Washers, Part # 84-3080)

Item #9
84-0050
!
Nut- 1/2" NC, Hex

Item #11
84-0140
!
Nut- Lock, 5/8" NF, Hex

Item #12
84-1001
!
Rod- Tension, 1/2" Dia. x 4-1/8" Long

Item #13
84-1002
!
Eyebolt- 3/8" NC x 1"

Item #14
84-1043
!

Screw- 5/8" NF x 2-3/4" HHC
