Seats - Tractor

Additional seats available in the Power King section.

!

Medium Back Mower Seat

STE420-026
!
Larger picture
Description: MEDIUM BACK MOWER SEAT
Pack Size: 1
Replaces (OEM): LESCO 050093
Fits Models: ARIENS 8.2" x 2.94" deck mount plus spring mount*
JOHN DEERE 8.2" x 2.94" deck mount
LAWN-BOY 7.5" x 7" deck mount plus spring mount*
MTD Spring mount
MURRAY 9" x 5.5" deck mount plus spring mount*
NOMA 7.5" x 7" deck mount
SNAPPER 9" x 5.5" deck mount plus spring mount*
TORO 7.5" x 7" deck mount plus spring mount*
TROY BILT 8.2" x 2.94" and 7.5" x 7" deck mount plus spring mount*
Width: 19"
Depth: 15 5/8"
Height: 8 7/8"
  Made by an OEM supplier
  (*Spring mount -- center plate with one 1/2"-13 weld nut)

Medium Back Seat

ORE73-350
!
Larger picture

Universal molded seat and cushion. Seat size:
8-7/8" high, 15-5/8" deep, 19" wide. Molded
cushion, drawn steel pan with protective edge trim.
Replaces:  Snapper 19978. Also fits Ariens, Bolens,
Gilson, Murray, MTD, Gravely, Dixon, Yazoo, Roper,
Toro and Wheel Horse.

Click on link below for bolt pattern and measurements.

High Back Mower Seat

STE420-046
!
Larger picture
Description: HIGH BACK MOWER SEAT
Pack Size: 1
Replaces (OEM): LESCO 050107
Fits Models: AYP 7.5" x 7" deck mount plus spring mount*
LAWN-BOY 7.5" x 7" deck mount plus spring mount*
MTD Spring mount*
MURRAY Spring mount*
NOMA 7.5" x 7" deck mount
SNAPPER Spring mount*
TORO 7.5" x 7" deck mount plus spring mount*
TROY BILT 7.5" x 7" deck mount plus spring mount*
Width: 18"
Depth: 14 3/4"
Height: 13 1/4"
  One hole bolt pattern 1/2"-13 and 12 hole pattern5/16"-18 clinch mounting nuts
Heavily padded seat back provides maximum supportfor the lumbar area of the operator's back
  (*Spring mount -- center plate with one 1/2"-13 weld nut)

Extra High Back Seat

ORE73-560
!

Replaces: Gravely - 8" x 11.5" deck mount
Replaces: Yazoo - spring mount
Made by an OEM supplier
18" W x 16" D x 17 3/4" HT

Click on link below for bolt pattern

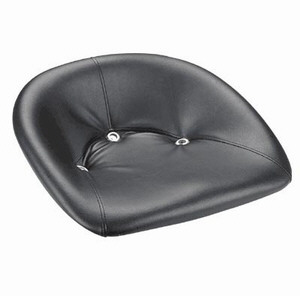

Power King Low Back Seat 03-9355

03-9355
!
Larger picture

Padded pan style seat
Dimensions:
width 19"
depth 19.7"
height 7.5"
bolt spacing 2"
Used on Power King
and Jim Dandy tractors.

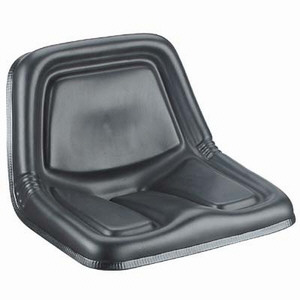

Power King High Back Seat 03-9356

03-7107
!
Larger picture

Dimensions:
Width 19.5"
Length 15"
Height 15"
Fits most garden tractors,
Used on Late model Power King.

Click on the link below for bolt pattern and measurements

Deluxe High Back Seat

STE420-179
!
Larger picture
Description: DELUXE HIGH BACK SEAT
UNIVERSAL MOUNT FOR JOHN DEERE
Pack Size: 1
  Bolt Patterns:
  (width X depth)
  7.5" X 3"
  7.5" X 7"
  8" X 11.5"
  8.2" X 5"
  10.63" X 7.5"
  11.25" X 11.5"
  Yellow Color
  Integral polyurethane construction, vinyl covered, waterproof, drain hole

Commercial Mower Seat

STE420-004
!
Larger picture

Description: COMMERCIAL MOWER SEAT
HIGH BACK
Pack Size: 1
Width: 18 3/4"
Depth: 20"
Height: 17 1/2"
  Universal seat to fit commercial mowers and ZTR's
  Used by Gravely, Woods, Exmark and others
  Slide track seat adjustment
  Seat with mount
  Gray color to reduce heat from the sun
  Safety switch
  Arm rests

Click on link below for bolt diagram
