Serial # 65758 and After (PN 03-7504 & 03-7505)
Serial # 65758 and After (PN 03-7504 & 03-7505)

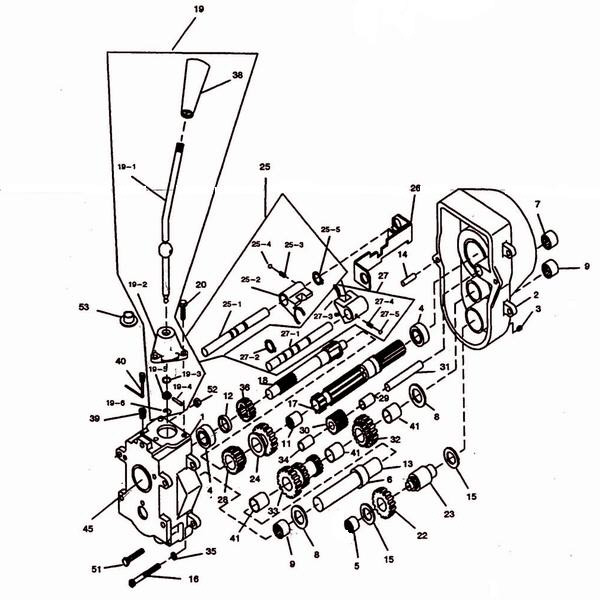

Use diagram numbers to locate items listed below.
Click on image to enlarge
Add to cart
Transmission Assembly 4 spd slow 3rd
03-7504
Assembly- Transmission 1600 NLA
Transmission Assembly 4 spd 16/24
03-7505
Assembly- Transmission 2400 NLA
Oil - Transmission
Add to cart
98-4012
Oil- 4-Speed
Item # 1
Add to cart
02-0914
Case- Front
Item # 2
Add to cart
03-0931
Case- Rear
Item # 3
Add to cart
23-6302
Plug- Pipe, 1/4" solid
Item # 4
Add to cart
80-0029
Bearing- Ball
Item # 5
Add to cart
80-0032
Bearing- Needle, 3/4" I.D. x 1" O.D. open
Item # 6
Add to cart
83-0056
Spacer- Cluster gear
Item # 7
Add to cart
80-0033
Bearing- Needle, 3/4" I.D. x 1" O.D. closed
Item # 8
Add to cart
80-0036
Bearing- Thrust, race, 1/16" thick
Item # 9
Add to cart
80-0035
Bearing- Needle, 7/8" I.D. x 3/4" wide
Item # 11
Add to cart
80-0021
Bearing- Needle, 7/16" I.D. x 1/2" long
Item # 12
83-0057
Spacer- Input shaft, 3/16" long, No Longer Available
