Serial # 62750

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

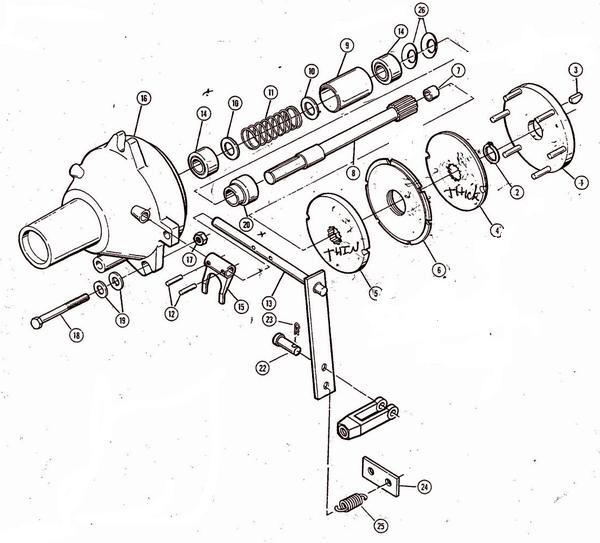

Product Diagram

Click on the image to enlarge.

Item # 1

Add to cart
100267
Plate- Clutch output, 6 pin
Replaces 02-6302

Item # 2

Add to cart
99-0011
Ring- Snap, retaining, 3/4" dia.

Item # 3

Add to cart
84-4043
Key- Woodruff, 3/16" x 5/8"

Item # 4

Add to cart
02-1306
Kit- Disc, clutch, plate (thick)
Includes Item # 5

Item # 5

Add to cart
Disc- Clutch, plate (thin)
Not Available by itself

Item # 6

Add to cart
02-6306
Plate- Clutch pressure, 6 slots

Item # 7

Add to cart
80-0031
Bushing- 1/2" I.D. x 5/8" x 3/4" lg.

Item # 8

Add to cart
02-7113
Shaft- Clutch input, 8-3/4" lg.

Item # 9

Add to cart
02-7117
Sleeve- Clutch thowout bearing

Item # 10

Add to cart
84-3070
Washer- 3/4" SAE flat

Item # 11

Add to cart
83-0121
Spring- Compression, 3-1/4" lg.

Item # 12

Add to cart
84-4018
Pin- Drive, 5/32" D x 7/8"

Item # 13

Add to cart
100263
Shaft- Clutch throwout
Replaces 03-7200

Item # 14

Add to cart
80-0029
Bearing- ball
