Serial Number 52590 - 59693 (Model 1612)

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

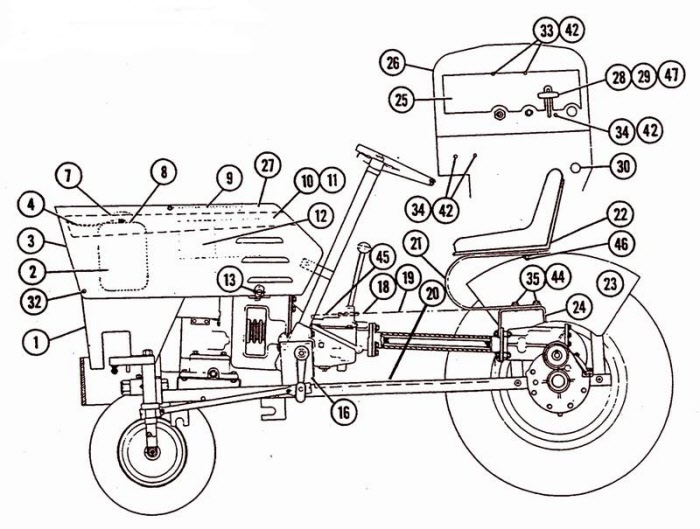

Product Diagram

Click on the image to enlarge.

Item # 2

Add to cart
03-2974
Tank - Gas 3 gals, w/o cap & filter

Item # 3

Add to cart
03-2972
Hood - Cover

Item # 4

Add to cart
03-2979
Shield - Splash gas tank

Item # 7

03-2975

Gauge - Gas cap

Replaced by 09-0089A without gauge

Item # 9

Add to cart
03-2978
Stop wire - Hood cover

See Set 98-7018-7

Add to cart
98-7018
Decal - Left side, mylar clear, Power King

See Set 98-7018-7

Add to cart
98-7017

Decal - Right side, mylar clear, Power King

Item # 12

Add to cart
03-2977
Hood - Engine shroud

Item # 13

Add to cart
09-0073
Fastener - Hood lever

Item # 16

Add to cart
02-0516
Bracket - Steering gear

Item # 18

Add to cart
98-7007
Decal - Gear shift, 1-1/4" x 1-1/2"

Item # 20

Add to cart
03-0912
Floor mat

Item # 22

Add to cart
03-7107

Seat - Deluxe Hi-back

NOTE: This will NOT blot on without modifications, you will need to create a plate.

The original is NLA.

Item # 24

Add to cart
03-2109
Frame - Seat bracket
