1-6
Model 1618 / 1620
!

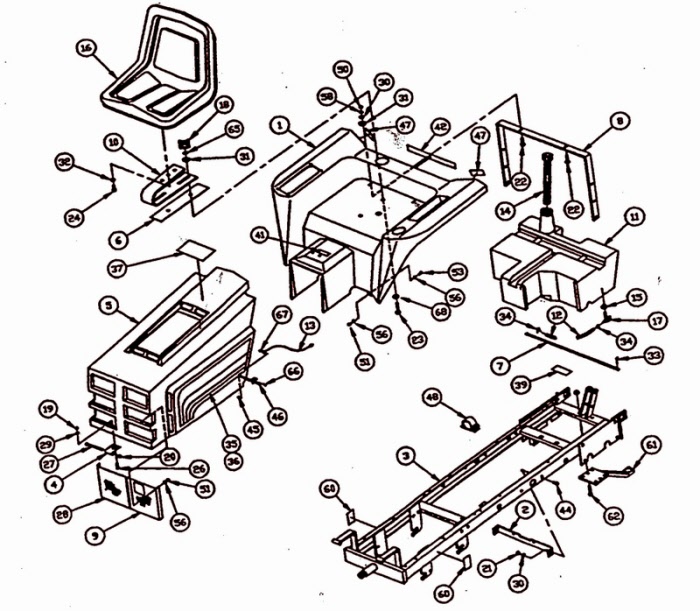

Use diagram numbers to locate items listed below.  For a larger image click on the link below.
!

Click Image To Enlarge Picture Above
!
Larger picture

Item # 1
01-0523
!
Body - Fender, Model 1618/1620

Item # 2
01-0530
!
Bracket - Transmission support

Item # 4
01-2900
!
Plate - Hood hinge

Item # 5
01-2914
!
Hood - Fiberglass

Item # (5)
102340
!
Hood - Fiberglass (Starting S/N 002001707)

Item # 6
01-6101
!
Plate - Seat spring support

Item # 7
01-6540
!
Rod - Fuel tank support

Item # 8
01-6890
!
Support - Fender body

Item # 9
101089
!
Screen - Grill

Item # 10
01-7112
!
Spring - Seat mounting

Item # 11
01-7501
!
Tank - Fuel, 8-1/4 gallon

Use 74" of 104388
104388-6
!
Line - Fuel

Item # 13
02-8703
!
Wire - Hood stop 20"

Replaced by 104645
104645
!
Cap - Fuel tank w/gauge
