Power King / Snapper
>
Body, Frame and Steering
>
Hood, Fenders, Gas Tank and Dash
>
Models 1983 & 1984
>
Dash Ser # 62750 - 65015
Dash Ser # 62750 - 65015

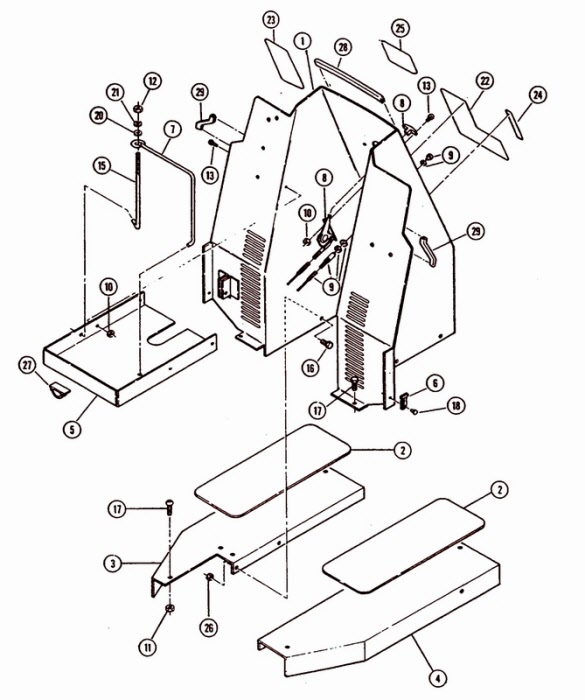

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Product Diagram
Click on the image to enlarge.
Item # 1
Add to cart
102357
Console - Includes firewall
Item # 2
Add to cart
03-0912
Pad - Foot, anti-slip
Item # 3
Add to cart
01-6308
Plate - Foot rest, right side
Item # 4
Add to cart
01-6309
Plate - Foot rest, left side
Item # 6
Add to cart
02-4716
Latch - "T" handle, flexible draw
Item # 7
Add to cart
03-0515
Bracket - Battery hold down
Item # 8
Add to cart
03-0908
Control - Throttle with knob
Item # 9
Add to cart
03-0911
Control - Choke, 25" wire
Item # 10
Add to cart
84-0030
Nut - Lock, No. 10-24, hex
Item # 11
Add to cart
84-0101
Nut - Lock, 5/16" NC, hex
Item # 12
Add to cart
84-0111
Nut 1/4" NC, hex
Item # 13
Add to cart
84-1010
Screw - No. 10-24 x 1/2", RHM
Item # 15
Add to cart
84-1014
"L" Bolt 1/4" NC x 8-3/8", OAL
Item # 16
Add to cart
84-2010
Screw 5/16" NF x 1/2", HHC
Next >
!
