Serial Number 43827 - 52589

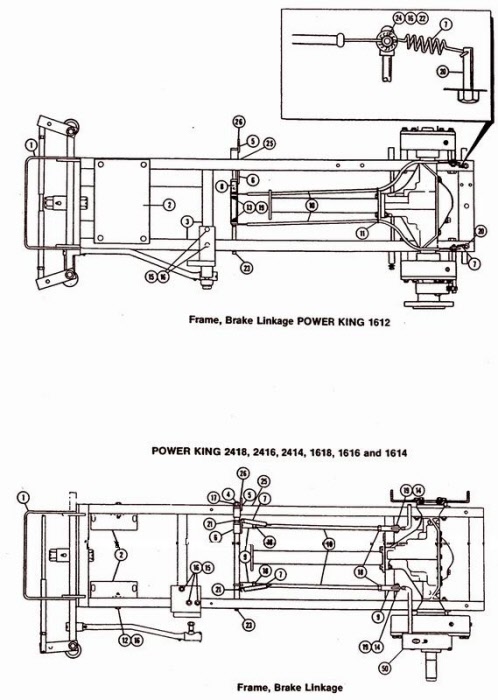

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

Product Diagram

Click on the image to enlarge.

Item # (2)

Add to cart
09-0015
Bracket - Engine, Kohler pair R & L
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 4

Add to cart
01-6317
Shaft - Foot brake, 16-5/8" hyd. lift
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 5

Add to cart
01-6315
Pedal - Foot brake, right
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 6

Add to cart
01-6316
Pedal - Foot brake, left
NO LONGER AVAILABLE

Item # 7

Add to cart
83-0022
Spring - Tension, 9/16" lg.

Item # 9

Add to cart
01-4708
Clevis - Solid brake link
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 10

Add to cart
01-4707
Link - Brake connecting
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 11

02-0535
Bracket - Brake cable
For Model 1612  NLA

Item # 12

Add to cart
84-2200

Screw - Hex hd cap, 7/16" NF x 2-1/4"
For Models 2418, 2416, 2414, 1618, 1616, 1614

Replaced by 84-2040

Add to cart
84-2040
Screw - Hex hd cap, 5/16" NF x 7/8"
For Model 1612

Item # 14

Add to cart
84-2040
Screw - Hex hd cap, 5/16" NF x 1"
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # 15

Add to cart
84-2223
Screw - Hex hd cap, 7/16" NF x 4"
For Models 2418, 2416, 2414, 1618, 1616, 1614

Item # (15)

Add to cart
84-2220
Screw - Hex hd cap, 7/16" NF x 3"
For Model 1612

Item # 16

Add to cart
84-0120
Nut - Hex lock, 7/16" NF
