Serial Number 52590 - 55660

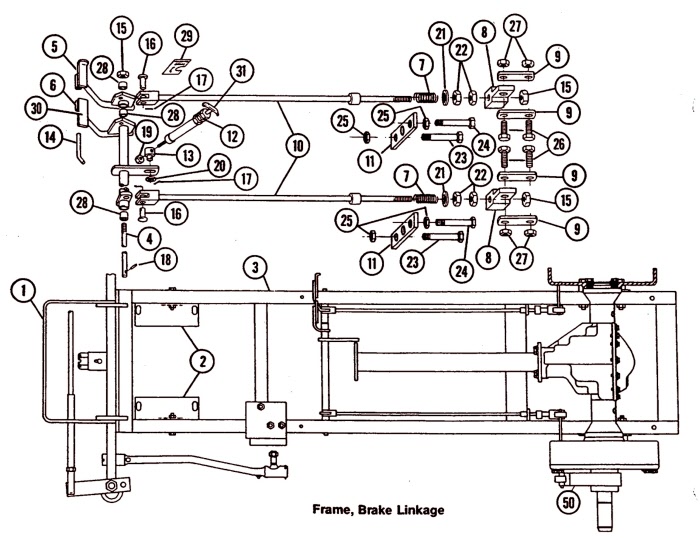

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

Product Diagram

Click on the image to enlarge.

Item # 2

Add to cart
09-0015
Bracket - Engine, Kohler pair R & L

Item # 4

Add to cart
01-6317
Shaft - Foot brake, 16-5/8" hyd. lift

Item # 5

Add to cart
01-8707
Pedal - Foot brake Right

Item # 7

Add to cart
83-1030
Spring - Compression, 2-3/4" long

Item # 10

Add to cart
01-7545
Link - Brake, connecting
NO LONGER AVAILABLE

Item # 13

Add to cart
01-2915
Sliding adapter - Parking brake

Item # 15

Add to cart
84-0130
Nut - Hex lock, 1/2" NF

Item # 16

Add to cart
84-4030
Pin - Clevis, 5/16" SAE

Item # 17

Add to cart
84-4013
Key - Cotter, 3/32" dia. x 5/8" lg.

Item # 18

Add to cart
84-4003
Pin - Drive, 7/32" dia. x 1" lg.

Item # 19

Add to cart
84-0100
Nut - Hex lock, 5/16" NF

Item # 20

Add to cart
84-3037
Washer - Flat, 3/8" SAE

Item # 21

Add to cart
84-3061
Washer - Flat, 1/2" SAE

Item # 22

Add to cart
84-0132
Nut - Jam, 1/2" NF
