1-24

Serial Number 62750 - Ross Gear

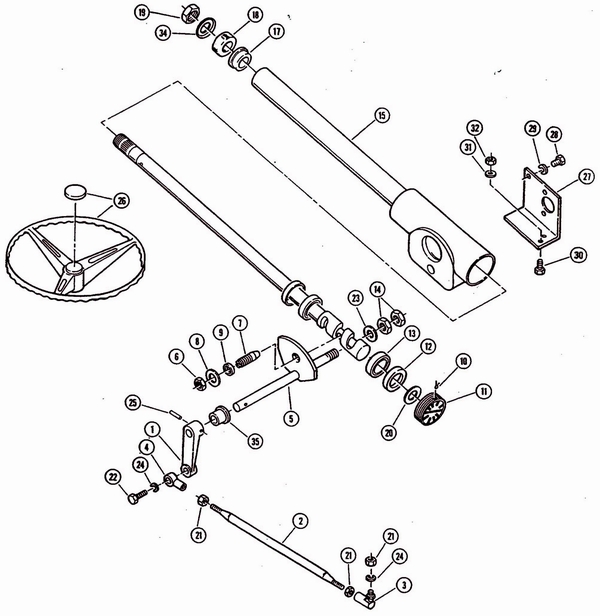

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

Click Image To Enlarge Picture Above

Add to cart

Use 01-2611

Add to cart
01-2611
Assembly - Steering gear
(contains items 5 thru 20)

Item # 2

Add to cart
01-6530
Arm - Steering spindle

Item # 3

Add to cart
01-6530
Link - Drag, 3/4" dia. x 15-34" long

Item # 4

Add to cart
104395
Bearing - Rod end

Item # 5

Add to cart
09-9037
Assembly - Output shaft with cross bolt
(Contains items 5, 6, 7, 8, 9, 14, & 23)

Item # 7

Add to cart
Stud - Taper
ONLY AVAILABLE IN STEERING GEAR & OUTPUT SHAFT ASSEMBLIES

Item # 8

Add to cart
09-9040

Seal - Taper stud

Item # 9

Add to cart

Retainer- Seal
ONLY AVAILABLE IN STEERING GEAR & OUTPUT SHAFT ASSEMBLIES

Item # 10

Add to cart
10211

Pin - Cotter

Item # 12

Add to cart
09-9004

Kit - Bearing
Cup - Ball assembly

Item # 13

Add to cart
09-9004
Kit - Bearing
Bearing - Ball with retainer

Item # 15

Add to cart
09-9047
Assembly - Steering column housing (Contains items 10, 11, 15, 17, 18, & 34)

Item # 16

Add to cart
09-9048
Assembly - Cam and tube (Contains items 12, 13, 16, 19, & 20)

Item # 18

09-9050
Washer - Felt No Longer Available
