Power King / Snapper
>
Body, Frame and Steering
>
Front End, Wheels and Tie Rods
>
Serial Number 460 - 43826
Serial Number 460 - 43826

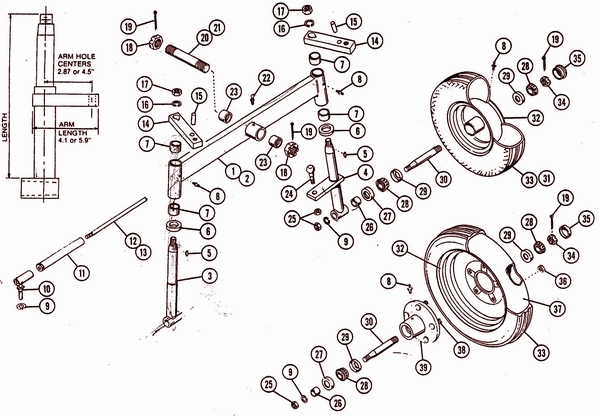

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Click Image To Enlarge Picture Above
Add to cart
Item # 1
Add to cart
01-0211
Front wheel support bar assembly w/bushings, PK
Item # 3
Add to cart
02-9102
Spindle - R, 12-3/4", no arm
Add to cart
01-9105
Spindle 16R, 10-7/8" lg., no arm, PK
Spindle
Add to cart
01-9102
Spindle 24R, 13-3/8" lg., w/4" arm, PK
Item # 4
Add to cart
01-9103
Spindle 24L, 13-3/8" lg., w/ 4"arm, 2-7/8" centers, PK
Add to cart
02-9103
Spindle 12-3/4" w/4" arm 2-7/8" centers
Add to cart
01-9104
Spindle 24L, 13-3/8" w/5-29/32" arm, 4-1/2" centers, PK
Add to cart
01-9106
Spindle 16L, 10-7/8" w/4" arm, 2-7/8" centers, PK
Add to cart
01-9107
Spindle 16L, 10-7/8" w/5-29/32" arm, 4-1/2" centers, PK
Item # 5
Add to cart
84-4061
Key - Woodruff, No. 15 special
Item # 6
Add to cart
80-0024
Bearing - Thrust, T-113
Item # 7
Add to cart
80-0013
Bushing 1-1/16" x 1-3/8" o.d. x 1" lg.
Item # 8
Add to cart
03-2102
Fitting - Grease, 1/4"-28, short
Item # 9
Add to cart
84-3110
Washer - Lock, 1/2" Reg.
