Power King / Snapper
>
Body, Frame and Steering
>
Front End, Wheels and Tie Rods
>
Serial Number 43827 - 62749
Serial Number 43827 - 62749

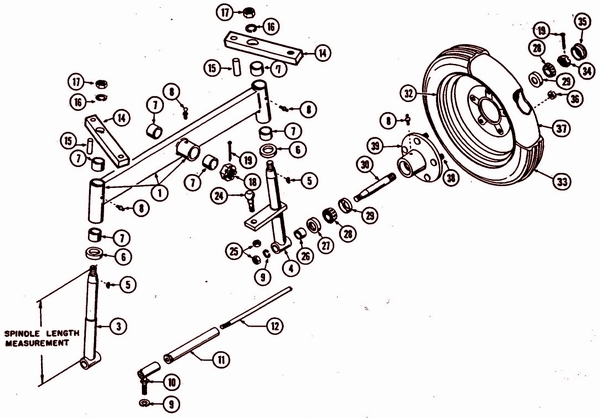

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Click Image To Enlarge Picture Above
Add to cart
Item # 1
Add to cart
01-0211
Front wheel support bar assembly w/bushings
Item # 3
Add to cart
01-9105
Spindle - Right hand, 10-7/8" lg. 16" wheels
For models 1618, 1616, 1614
Item # (3)
Add to cart
01-9102
Spindle - Right hand, 13-3/8" lg. 24" wheels
For models 2418, 2416, 2414
Item # 4
Add to cart
01-9103
Spindle - Left hand, 13-3/8" lg. 24" wheels
For models 2418, 2416, 2414
Item # (4)
Add to cart
01-9106
Spindle - Left hand, 10-7/8" lg. 16" wheels
For models 1618, 1616, 1614
Item # 5
Add to cart
84-4061
Key - Woodruff
Item # 6
Add to cart
80-0024
Bearing - thrust
Item # 7
Add to cart
80-0013
Bushing 1-1/8" x 1-3/8" o.d. x 1" lg.
Item # 8
Add to cart
03-2102
Fitting - Grease, 1/4-28 short
Item # 9
Add to cart
84-3110
Washer - Lock, 1/2" regular
Item # 10
Add to cart
03-4107
Knuckle - Tie rod, 1/2-20 threads
Item # 11
Add to cart
03-1010
Casing - Tie rod support
Item # 12
Add to cart
01-0910
Tie rod 28" long
Item # 14
Add to cart
03-4704
Link - Drag, 1" x 1-1/2" x 7-1/4" lg.
Next >
!
