1600/2400 Serial Number 65772 and Up
1600/2400 Serial Number 65772 and Up

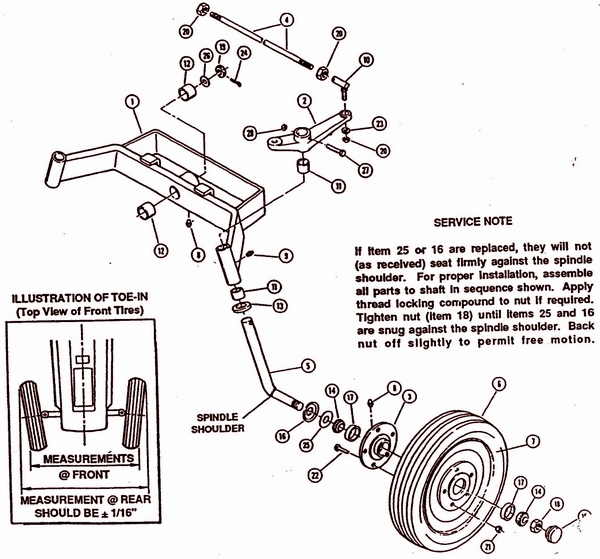

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Click Image to Enlarge Picture Above
Add to cart
Item #1
Add to cart
01-0212
Support, front
Item #2
Add to cart
01-0220
Steering spindle, right side (double arm)
Item #3
Add to cart
01-2920
Front wheel
Item #4
Add to cart
01-0910
Tie, 1/2" dia.x28 long
Item #5
Add to cart
01-6817
Front wheel, 1600 series
Item #6
Add to cart
4.0-12.0, front wheel
Item # 7
Add to cart
01-8708
Front, for 4.0-12.0 tire
Item #(7)
Add to cart
01-7532
Front, 8.0-10
Item #8
Add to cart
03-2122
Grease, 1/4-28, 90 degrees
Item #9
Add to cart
03-2102
Grease, 1/4-28 short
Item #10
Add to cart
03-4107
Rod end, 1/4 NF
Item #11
Add to cart
80-0013
1-18 IDx1-3/8 ODx1
Item #12
Add to cart
80-0019
Sleeve, 1-1/2"IDx1"lg.
Item #13
Add to cart
80-0024
Thrust
