Spindle Assemblies
!

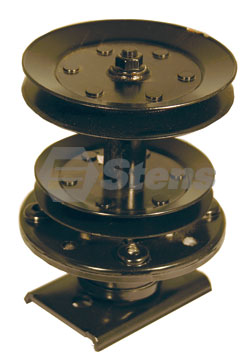

AYP Spindle assembly 121705X
STE285-886
!
Larger picture
Replaces (OEM): AYP 121704X
AYP 121705X
HUSQVARNA 532 12 17-04
HUSQVARNA 532 12 17-05
Fits Models: AYP Y1844A, Y1844B and YE16H44C 44" cut decks yard tractors, 1986-1993, for 18 HP engines
Specs:
  • Height:6 1/2" OVERALL
  • 2 1/4" width blade saddle
Additional Information:
  • Uses our 230-060 Bearing
  • Uses our 285-134 Self-tapping Screw

AYP Spindle assembly 121657X
STE285-878
!
Larger picture
Replaces (OEM): AYP 121617X
AYP 121657X
HUSQVARNA 532 12 16-17
HUSQVARNA 532 12 16-57
Fits Models: AYP 44" and 50" cut decks, 1985-1993
Specs:
  • Height:5 3/8" OVERALL
  • 2 1/4" width blade saddle
Additional Information:
  • Uses our 230-060 Bearing

AYP Spindle assembly 136819
STE285-895
!
Larger picture

Replaces (OEM): AYP 105483X
AYP 106037X
AYP 121622X
AYP 121658X
AYP 136818
AYP 136819
HUSQVARNA 532 10 60-37
HUSQVARNA 532 12 16-58
HUSQVARNA 532 13 68-18
HUSQVARNA 532 13 68-19
Fits Models: AYP Y2050C, Y1844A, Y1844B and YE16H44C yard tractors, 44" and 50" cut decks, 1985-1993, for 20 HP engines
Specs:
  • Height:3 3/4" OVERALL
  • 2 1/4" width blade saddle
Additional Information:
  • Uses our 285-134 Self-tapping Screw

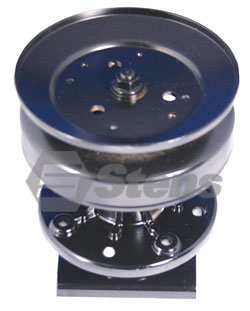

AYP Spindle assembly 677A233
STE285-213
!
Larger picture
Replaces (OEM): AYP 101477X
AYP 677A14
AYP 677A181
AYP 677A233
HUSQVARNA 532 10 14-77
SEARS 101477X
SEARS 677A14
SEARS 677A233
Fits Models: AYP LO815DR, 1999 and older
Specs:
  • Height:6 3/4"
  • 2 1/2" blade saddle
  • Made with the brake lip
Additional Information:
  • Uses our 230-060 Bearing
  • Uses our 285-134 Self-tapping Screw

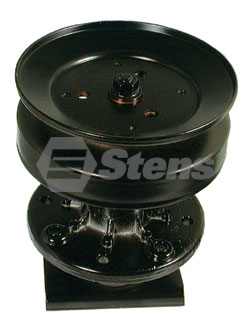

AYP Spindle assembly 121687X
STE285-031
!
Larger picture
Replaces (OEM): AYP 105891X
AYP 121676X
AYP 121687X
HUSQVARNA 532 10 58-91
HUSQVARNA 532 12 16-76
HUSQVARNA 532 12 16-87
SEARS 105891X
SEARS 121687X
Fits Models: AYP 38" cut decks, 1985-1991
Specs:
  • Height:6 7/8" OVERALL
  • 2 1/4" width blade saddle
Additional Information:
  • Uses our 230-060 Bearing
  • Uses our 285-134 Self-tapping Screw

AYP Spindle assembly 130794
STE285-456
!
Larger picture

Replaces (OEM): AYP 130794
HUSQVARNA 532 13 07-94
Fits Models: AYP 36", 38" and 42" cut ventilated decks using star shaped center hole blades
HUSQVARNA 36", 38" and 42" cut ventilated decks using star shaped center hole blades
Specs:
  • Height:7"
  • Includes pulley nut, blade bolt and washer
  • No threads, self tapping
  • Uses 275-280 for 38" cut deck
  • Uses 275-284 for 42" cut deck
Additional Information:
  • Uses our 230-029 Spindle Bearing
  • Uses our 230-060 Bearing
  • Use with our 275-280 Spindle Pulley
  • Use with our 275-284 Spindle Pulley
  • Uses our 285-040 Hex Head Screw
  • Uses our 285-441 Spindle Housing
  • Uses our 285-464 Spindle Shaft
  • Uses our 285-476 Lock Nut

AYP Spindle assembly Heavy Duty
STE285-383
!

Fits Models: AYP 36", 38" and 42" cut ventilated decks using star shaped center hole blades
HUSQVARNA 36", 38" and 42" cut ventilated decks using star shaped center hole blades
Specs:
  • Height:7"
  • Heavy duty version of our 285-456
  • Includes pulley nut, blade bolt, washer and spacer
  • No threads, self tapping
  • Uses 275-280 spindle pulley for 38" cut decks
  • Uses 275-284 spindle pulley for 42" cut decks

AYP Spindle Housing 128774
STE285-441
!
Larger picture

Replaces (OEM): AYP 128774
HUSQVARNA 532 12 87-74
Fits Models: AYP 36", 38" and 42" cut ventilated decks using star shaped center hole blades
HUSQVARNA 36", 38" and 42" cut ventilated decks using star shaped center hole blades
Specs:
  • Height:5 1/2"
  • Cast aluminum housing
  • 3 bolt pattern
Additional Information:
  • Uses our 230-029 Spindle Bearing
  • Uses our 230-060 Bearing
  • Uses our 285-040 Hex Head Screw
  • Installed with our 285-456 Spindle Assembly
  • Use with our 285-464 Spindle Shaft

AYP Spindle Housing

ORE82-024
!
Larger picture
Heavy Duty version of STE285-441
Housing only for ORE82-014

AYP Spindle assembly 143651
STE285-041
!
Larger picture
Replaces (OEM): AYP 143651
HUSQVARNA 532 14 36-51
Fits Models: AYP 44" and 50" cut decks
HUSQVARNA 44", 46" and 50" ventilated decks using starshaped center blades
Specs:
  • Height:4 7/8"
Additional Information:
  • Includes 285-369 Spindle Housing
  • Uses our 285-373 Spindle Shaft

AYP Spindle housing 137152
STE285-369
!
Larger picture
Replaces (OEM): AYP 137152
HUSQVARNA 532 13 71-52
Fits Models: AYP 44" and 50" cut ventilated decks using star shaped center hole blades
HUSQVARNA 44", 46" and 50" ventilated decks using starshaped center blades
Specs:
  • Height:3 1/2" OVERALL
  • Cast aluminum housing
  • 3 bolt mounting pattern
Additional Information:
  • Uses our 230-029 Spindle Bearing
  • Uses our 230-060 Bearing
  • Available in our 285-041 Spindle Assembly
  • Uses our 285-373 Spindle Shaft

AYP Spindle assembly 174356
STE285-108
!
Larger picture

Replaces (OEM): AYP 174356
HUSQVARNA 532 17 43-56
Fits Models: AYP 48" cut decks, 2002 and newer
HUSQVARNA GT 2248, GTH 2248, GTH 2548, YTH 1848XP, YTH2448 and YTH 2748
Specs:
  • Height:5 29/32" OVERALL
  • Grease fitting on threaded end
  • Includes shaft, bearings and dust cap
Additional Information:
  • Uses our 230-060 Bearing

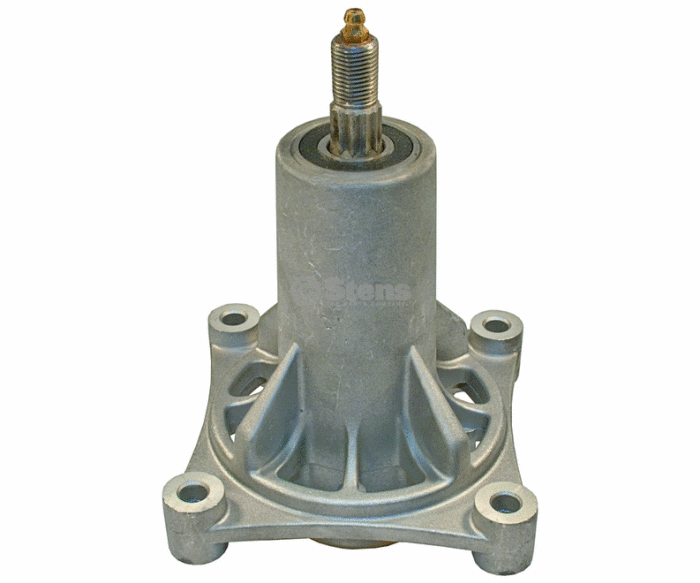

AYP Spindle assembly 187292
STE285-585
!

Replaces (OEM): AYP 187292
HUSQVARNA 532187292
Fits Models: AYP 48 and 54" decks
Specs:
  • Height:7 1/2"
  • No threads, self-tapping screws
  • Includes top nut, bottom bolt, washer, 4 screws and grease zerk
