Starters 12 Volt



Electric Starter 12 098 21-S

Add to cart
STE435-487
Description: MEGA-FIRE ELECTRIC STARTER
KOHLER/12 098 21-S
Pack Size: 1
Replaces (OEM): KOHLER 12 098 09-S
KOHLER 12 098 12-S
KOHLER 12 098 19-S
KOHLER 12 098 21-S
Fits Models: KOHLER CH11-CH15 and CV15
Length: 7 1/4"
OD Housing: 3 1/16"

Electric Starter 12 098 22-S

Add to cart
STE435-479

Replaces (OEM): KOHLER 12 098 08
KOHLER 12 098 08-S
KOHLER 12 098 13
KOHLER 12 098 13-S
KOHLER 12 098 15
KOHLER 12 098 15-S
KOHLER 12 098 20
KOHLER 12 098 20-S
KOHLER 12 098 22
KOHLER 12 098 22-S
Fits Models:

KOHLER CH14, CV11, CV12.5, CV15, CV15S, CV16, CV16S,CV460S and CV490S; for 9 thru 15 HP engines

 13 tooth drive

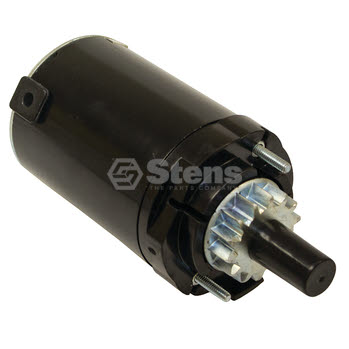

Electric Starter 20 098 10-S

Add to cart
STE435-490

Electric Starter 25 098 07

Add to cart
STE435-511

Replaces (OEM): KOHLER 12 098 10
KOHLER 25 098 03
KOHLER 25 098 04
KOHLER 25 098 04-S
KOHLER 25 098 05
KOHLER 25 098 06
KOHLER 25 098 07
KOHLER 25 098 07-S
Fits Models: KOHLER CV14, CV15 and CV16

Electric Starter 25 098 09-S

Add to cart
STE435-331

Replaces (OEM): KOHLER 12 098 03-S
KOHLER 24 098 01-S
KOHLER 25 098 08-S
KOHLER 25 098 09-S
Fits Models: KOHLER CH12.5-CH25 and CV12.5-CV22

Electric Starter 32 098 04-S

Add to cart
STE435-275
Replaces OEM:
  • KOHLER: 32 098 01
  • KOHLER: 32 098 03-S
  • KOHLER: 32 098 04-S
  • KOHLER: 3209801
Fits Models:
  • KOHLER SV710, SV715, SV720, SV725
Specs:
  • Length: 9 " OVERALL
  • Center To Center Mount: 2 5/8 "
  • OD Housing: 3 "
  • Teeth: 10 metal gear
  • 5" housing length between caps

Electric Starter 41 098 01

Add to cart
STE435-005

REPLACES OEM:
John Deere: AM31754, AM32853, AM34361
Kohler: 41 098 01, 41 098 01-S, 41 098 03, 41 098 07, 41 098 08, 41 098 08-S, 45 098 01, 52 098 07
Lester: 5767
FITS MODELS:
Cub Cadet: 800, 1974-1980
John Deere: 110, 1972-1974, 200, 1975 and 208, 1977-1978
Kohler: K161 and K181 engines
SPECS:
Teeth: 16
Volt: 12
Warranty: Will be voided upon striking or disassembling
Appearance may vary from OEM

Electric Starter 41 098 06-S

Add to cart
STE435-107

Replaces (OEM): GRAVELY 04204
KOHLER 41 098 04
KOHLER 41 098 06
KOHLER 41 098 06-S
KOHLER 4733040
KOHLER 5666640
Fits Models:

KOHLER M8-M16

10 tooth drive
3 1/16"OD housing
7 1/4" overall length
Two 1/4"-20 mounting studs
2 1/2" center to center mount
Made by an OEM supplier



Electric Starter 45 098 09-S

Add to cart
STE435-495

Replaces (OEM): KOHLER 237131
KOHLER 237511
KOHLER 237564
KOHLER 45 098 07
KOHLER 45 098 09
KOHLER 45 098 09-S
KOHLER A-237510
KOHLER A-237534
Fits Models:

KOHLER K241-K341; for 10 thru 16 HP most popular K series engines

For 10 thru 16 HP engines
10 tooth drive
This starter replaces 13 tooth original starters.
High mount
3 1/16" OD housing
7 1/4" overall length
Two 3/8" mounting holes
2 5/8" center to center mount
Most popular for K series

Electric Starter 45 098 10-S

Add to cart
STE435-491

Replaces (OEM): KOHLER 237511-A
KOHLER 45 098 10
KOHLER 45 098 10-S
KOHLER A-237511
Fits Models:

KOHLER K241-K321; for 10 thru 14 HP engines

10 tooth drive
Low mount style
3 1/16"OD housing
7 1/4" overall length
Two 3/8" mounting holes 2 5/8" center to center mount
Made by an OEM supplier



Electric Starter 48 098 04-S

Add to cart
KOH48 098 04-S

Replaces (OEM): KOHLER 48 098 02
KOHLER 48 098 04
KOHLER 48 098 04-S
John Deere AM37725
Fits Models:

KOHLER K482, K532 and K582

9 tooth drive
3.053"OD
9 3/4" overall length



Electric Starter 52 098 12-S

Add to cart
STE435-503

Replaces (OEM): GRAVELY 032546
KOHLER 52 098 03
KOHLER 52 098 09
KOHLER 52 098 12
KOHLER 52 098 12-S
Fits Models: GRAVELY For 17 thru 19 HP most popular Magnum seriesengines
KOHLER KT17-KT19, MV16, MV18 and M18; for 17 thru 19HP most popular Magnum series engines
9 tooth drive
3 1/16"OD housing
8 7/16" overall length
Two 1/4"-20 mounting studs
2 1/2" center to center mount
Battery cable stud is at 90* from housing

Electric Starter 52 098 13-S

Add to cart
STE435-507

Replaces (OEM): GRAVELY 038033
GRAVELY 049247
KOHLER 52 098 06
KOHLER 52 098 10
KOHLER 52 098 13
KOHLER 52 098 13-S
Fits Models: KOHLER M18, M20, MV20, KT19, KT21, KT161 and KT181;for most popular KT series engines

Electric Starter 63 098 01-S

Add to cart
KOH63 098 01-S

Original Kohler Part

Fits models CS8.5, CS10 & CS12 series engines

Heavy Duty Electric Starter

Add to cart
STE435-495

Replaces:
Kohler 45-098-09, 45-098-09-S, A-237510,
A-237534, 237564, 237131, 45-098-07, 237511

Magnum HD Starter Motor
Heavy Duty version of our STE435-495
15% more torque
15% faster cranking
Exceeds OEM standards
Heavier gel coat on the laminations
Larger brush surface contact area
