OEM # 918-04865A ~ 918-06976A

Spindle Assembly 918-04865A

Add to cart
STE285-847
Description
  • Spindle Assembly
    MTD 918-04636
Replaces OEM:
  • Cub Cadet: 618-04636, 618-04636A, 618-04865A, 918-04865A
  • MTD: 618-04636, 618-04636A, 618-04865A, 918-04636, 918-04636A, 918-04865A
Fits Models:
  • Cub Cadet LTX1042, LTX1045, LTX1046, Z-force S 46
  • MTD 13AL771T004, 13AL78ST099, 13AL78ST299,13AL795T004, 13AL795T057, 13AO785T058, 13AR91PT099, 13AR91PT299, 13AT915T004, 13AX771T004, 13AX791T031,13AX90YT001, 13AX915T004,13WX791T031
Specs:
  • OD: 6 "
  • Height: 6 "
  • Pulley included

Spindle Assembly 918-05016

Add to cart
STE285-885

Spindle Assembly 918-05078A

Add to cart
STE285-167
285-167

Spindle Assembly 918-05137

Add to cart
STE285-157
285-157

REPLACES OEM:
MTD: 618-05137, 918-05137,
FITS MODELS:
Cub Cadet: RZT-S54
MTD: Z6600 and ZT-L54
Troy-Bilt: Mustang 54 XP
SPECS:
Height: 6 7/8"
OD of Pulley: 5 1/2"
Includes nut, spacer and grease zerk
Specially designed spindle shaft to replace 6 pt. star
No threads in housing, use self-tapping

Spindle Assembly 918-0574

Add to cart
STE285-105

Description: SPINDLE ASSEMBLY
MTD/918-0574
Pack Size: 1
Replaces (OEM): MTD 618-0565
MTD 618-0574
MTD 918-0574
TROY BILT 918-0574
Fits Models: MTD Newer 42" cut 600 series, 13AD604G401, 13AI608G129, 13AK604G401, 13AK608G062, 13AK608G129,13AS608G033, 13AT618G098, 13BR609G022, 13AD608G300, 13AP608G129, 13AQ609G033, 13AS608G033, 13BR609G022, 13BT604G401 and 13BT604G452
TROY BILT 13AP609G063 LTX1842, 13AQ609G063, 13BD609G063and 13BX609G063
Height: 4 7/8"

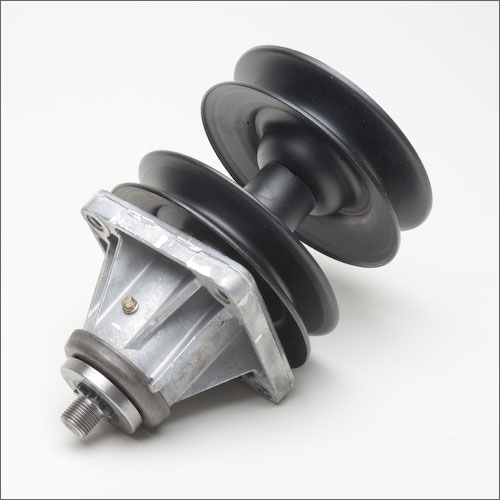

Spindle Assembly 918-0595

Add to cart
STE285-865

REPLACES OEM:
Cub Cadet: 618-0595, 618-0595a, 618-0595B, 918-0593A, 918-0595A, 918-0595B
MTD: 618-0593, 618-0595, 618-0595A, 618-0595B, 915-0595A, 918-0593, 918-0593A, 918-0595, 918-0595B
Troy-Bilt: 618-0595, 618-0595A, 918-0593A, 918-0595, 918-0595B
FITS MODELS:
MTD: Older models with 46" deck with double pulley, 800 series with special design for 6 pt. star center hole
Troy Bilt: 800 series with special design for 6 pt. star center hole
SPECS:
OD of Pulley: 5"
Specially designed: to replace 6 pt. star spindle shaft
Pulley included
No threads in housing, use self-tapping screws

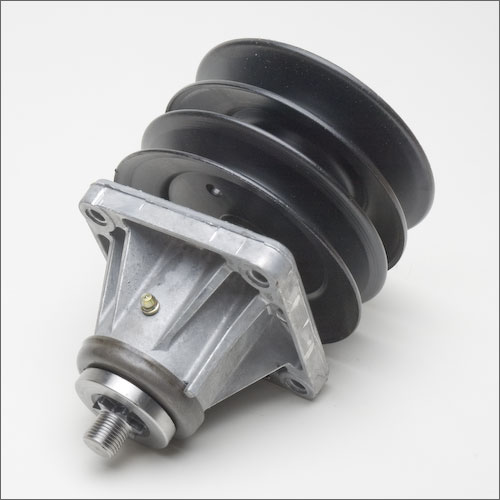

Spindle Assembly 918-0596

Add to cart
918-0596C

OEM MTD PART

Replaces 618-0594 & 918-0596

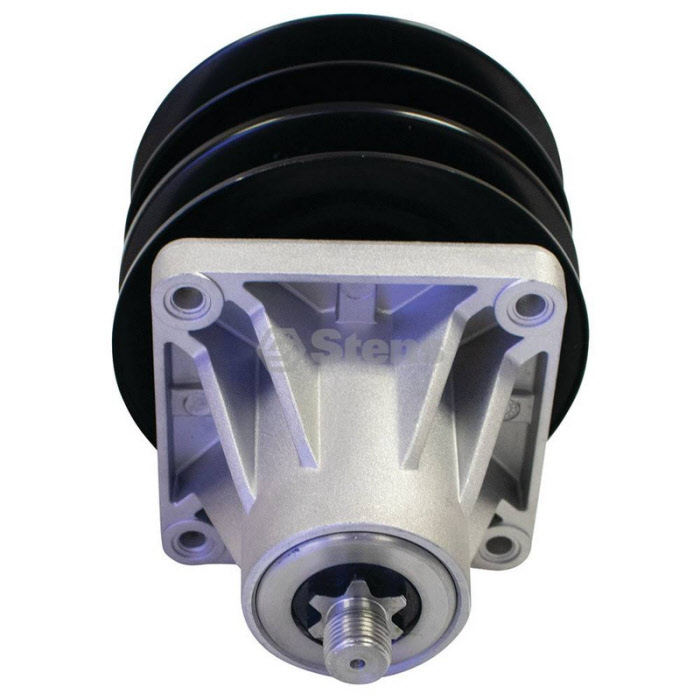

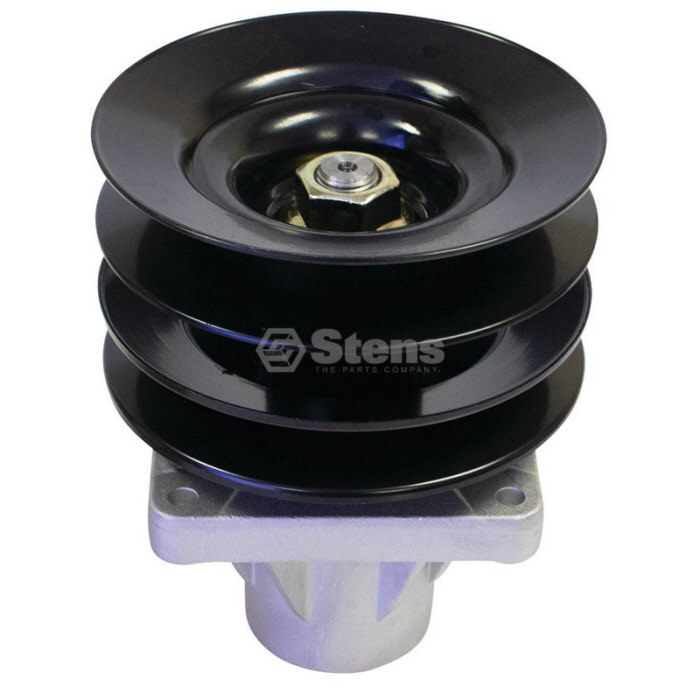

Spindle Assembly 918-0596D

Add to cart
STE285-129
DESCRIPTION
Stens Spindle Assembly
MTD 918-0596D
REPLACES OEM
  • MTD618-0594, 618-0596, 618-0596B, 618-0596C, 618-0596D, 918-0596, 918-0596B, 918-0596C, 918-0596D
FITS MODELS
  • Huskee13AS608H731 and 13CS608H731 lawn tractors
  • Ranch King13AU618H705 lawn tractors
  • Yard Machines13AQ608H729 lawn tractors
  • Yardman13AT604H701, 13AT604H755, 13AT614H401, 13AT614H701, 13AT614H755, 13AU614H755, 13AZ614H401, 13AZ614H701, 13BT604G401 and 13BT604H401 lawn tractors
    • SPECS
  • Height7"
  • Pulley Outer Diameter5"
  • Double pulley included
  • 6 pt. star design
  • No threads in housing, use self-tapping screws

    • Spindle Assembly 918-06032

    Add to cart
    STE285-171
    285-171
    REPLACES OEM:
    MTD: 618-06032, 918-06032,
    FITS MODELS:
    MTD: 13B326JC058, 13B326JC700 and 13B326JC758
    SPECS:
    Height: 6"
    OD of Pulley: 5"
    Includes nut, spacer and grease zerk
    Specially designed spindle shaft to replace 6 pt. star
    No threads in housing, use self-tapping screws

    Spindle Assembly 918-0659A

    Add to cart
    STE285-936
    Description
    • Spindle Assembly
      Cub Cadet 918-0659A
    Replaces OEM:
    • Cub Cadet: 618-0624, 918-0624A, 918-0659, 918-0659A
    • MTD: 618-0624, 618-0659, 918-0624, 918-0624A, 918-0659, 918-0659A
    • Troy-Bilt: 618-0624, 618-0659, 918-0624A
    Fits Models:
    • Cub Cadet LT1040, LT1042 and RZT models with 42" deck using special design for 6 point star center hole blades
    • Troy Bilt 42" deck using special design for 6 point star center hole blades
    Specs:
    • Height: 6 1/2 "
    • No threads; self-tapping

    Spindle Assembly 918-0660B

    Add to cart
    STE285-145
    285-145
    Replaces OEM:
    • CUB CADET: 618-0660
    • CUB CADET: 618-0660A
    • CUB CADET: 618-0660B
    • CUB CADET: 918-0660
    • CUB CADET: 918-0660A
    • CUB CADET: 918-0660B
    • MTD: 618-0660
    • MTD: 618-0660A
    • MTD: 618-0990B
    • MTD: 918-0625B
    • MTD: 918-0660
    • MTD: 918-0660A
    • MTD: 918-0660B
    • TROY BILT: 618-0660
    • TROY BILT: 618-0660A
    • TROY BILT: 618-0660B
    • TROY BILT: 918-0660
    • TROY BILT: 918-0660A
    • TROY BILT: 918-0660B
    Fits Models:
    • CUB CADET LT1045, LT1046 and i1046 with 46" decks usingstar hole blades
    Specs:
    • Length: 6 1/2 "
    • Width: 4 "
    • Nut space and grease zerk.

    Spindle Assembly 918-0671

    Add to cart
    STE285-859
    Replaces OEM:
    • Cub Cadet: 618-04608a
    • Cub Cadet: 618-0671D
    • Cub Cadet: 918-04608A
    • Cub Cadet: 918-0671
    • MTD: 618-0671
    • MTD: 618-0671B
    • MTD: 918-0671B
    Fits Models:
    • Cub Cadet GT1054, GT1554, RZT54
    • MTD 14AA815K004, 14AK945K004, 14AW94PK099, 17AF2ACK004
    Specs:
    • Height: 7 3/4 "
    • 5 7/16" OD of Pulley
    • Includes pulley, nut, and grease zerk

    Spindle Assembly 918-06976A

    Add to cart
    STE285-703

    REPLACES OEM:
    Cub Cadet: 618-06976, 618-06976A, 918-06976, 918-06976A
    MTD: 618-06976, 618-06976A, 918-06976, 918-06976A
    FITS MODELS:
    Cub Cadet: LT42, LT42C and LX42 with 42" deck
    MTD: 131PA1ZS099, CYT4220 and CYT4220SE with 42" deck
    SPECS:
    Height: 6 3/16"
    OD of Pulley: 5 1/2"
    Thread: 5/8"-18 UNF
