109-6917 ~ 7059964

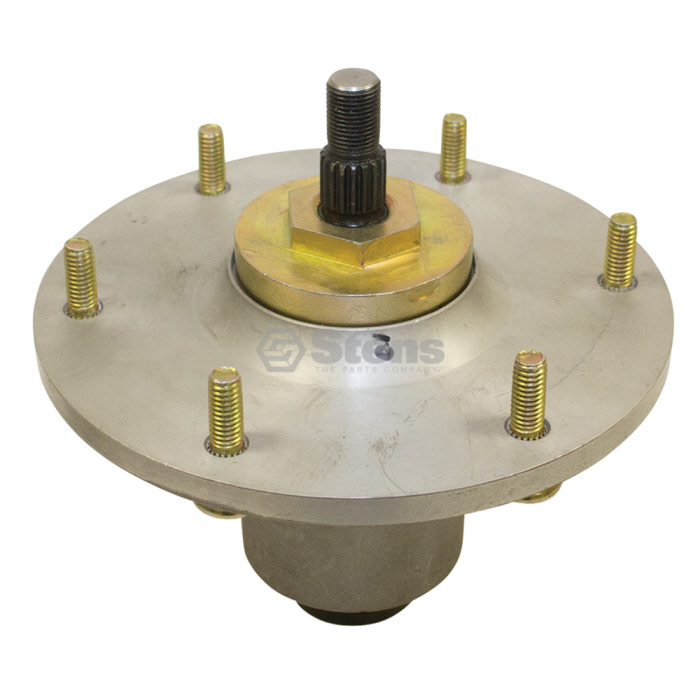

Spindle assembly 109-6917

Add to cart
STE285-887
REPLACES OEM:
Exmark: 109-6917,
FITS MODELS:
Exmark: Next Laser Z LZDS902K, LZD25KD605, LZDKD725, LZS29PKA606, LZX23KD605, LZDKD725 and LZS29PKA606
SPECS:
OD: 7 1/4"
Height: 7 1/2"

Spindle Assembly 117-7439

Add to cart
STE285-923
REPLACES OEM:
Exmark: 117-7268, 117-7439
Toro: 117-7267, 117-7268, 117-7439
FITS MODELS:
Toro: 4200, 5000, 4216, 4235, 4260 and 5060 TimeCutter
SPECS:
OD: 6 1/4"
Includes pulley nut

Spindle assembly 1-634972

Add to cart
STE285-929
285-929

REPLACES OEM:
Exmark: 1-634972,
FITS MODELS:
Exmark: Lazer Z, Serial No. 150,000-259,999
SPECS:
Height: 7 1/8"

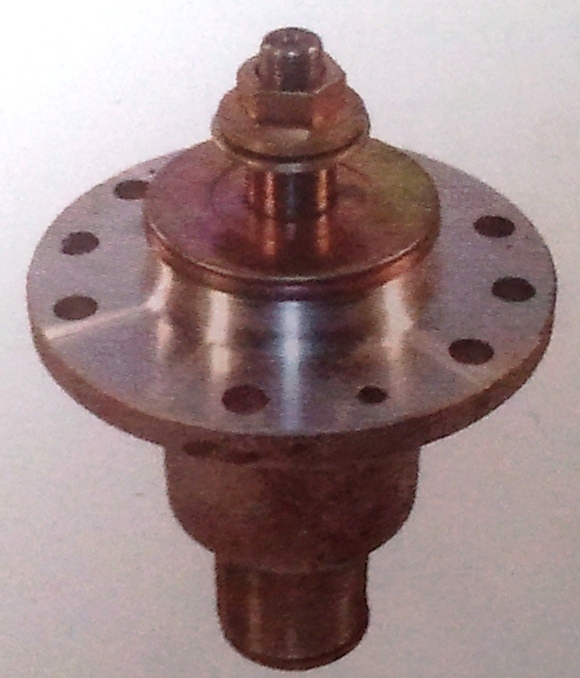

Spindle assembly 1-644092

Add to cart
STE285-567
Replaces OEM:
  • EXMARK: 1-644092
Fits Models:
  • EXMARK Lazer Z with 72" decks
Specs:
  • Key 4.8 mm
  • 7 1/2 HT
  • Includes grease zerk, relief valve, nut, 2 cup washers, bolt and dust cover

Spindle assembly 644092

Add to cart
STE285-736

REPLACES OEM:
Exmark: 1-644092
FITS MODELS:
Exmark: Lazer Z with 52", 60" and 72" deck, Serial No. 190,000-269,999
SPECS:
OD: 5 1/2"
Height: 6 3/4"
OD of Pulley: 8"

Spindle assembly 7059759

Add to cart
STE285-809
Replaces (OEM): BOBCAT 36006N
EXMARK 1-302030
JACOBSEN 552189
KEES 101455
KEES 362024
LESCO 050135
SNAPPER 5-9759
SNAPPER 7-6379
SNAPPER 7059759
Fits Models: BOBCAT 32" and 36" cut decks with short shaft
EXMARK Outside spindle of 48" cut decks, 32" and 36"cut decks with short shaft
JACOBSEN 32" and 36" cut decks with short shaft
JOHN DEERE 32" and 36" cut decks with short shaft
SNAPPER 32" and 36" cut decks with short shaft
ID: 5/8" SHAFT
OD: 1" SHAFT
Height: 5 3/16" OVERALL
  1/4" keyway

Spindle assembly 7059964

Add to cart
STE285-940
Replaces (OEM): BOBCAT 36082N
EXMARK 1-402006
JACOBSEN 552312
KEES 101446
KEES 482005
LESCO 050150
SNAPPER 5-9964
SNAPPER 7-6645
SNAPPER 7059964
Fits Models: BOBCAT 48" cut decks with long shaft
EXMARK Center spindle 48" cut decks with long shaft
JACOBSEN 48" cut decks with long shafts
JOHN DEERE 48" cut decks with long shaft
SNAPPER 48" cut decks with long shaft
ID: 5/8" SHAFT
OD: 1" SHAFT
Height: 6 1/4" OVERALL
  1/4" keyway
  With grease fitting
