Snapper

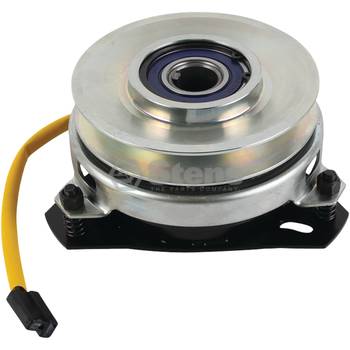

Xtreme PTO Clutch 5210-33

Add to cart
STEX0185

DESCRIPTION
Xtreme PTO Clutch
MTD 917-3497
REPLACES OEM
  • AGCO1703816SM
  • Bolens717-0983, 717-3497, 917-0983, 917-3497
  • CaseIH990947
  • Craftsman16343, 1703816SM, 19982, 53679, 7016343, 7053679, 717-0983, 717-3497, 917-0983, 917-3497
  • Cub Cadet717-0983, 717-0983P, 717-3497, 917-0983, 917-3497
  • Ingersoll Rand990947
  • Jacobsen990947
  • King Cat232201
  • MTD1755341P, 717-0983, 717-0983P, 717-3497, 917-0983, 917-3497
  • Simplicity1703816, 1703816SM, 71703816
  • Snapper16343, 19982, 53679, 7016343, 7053679, 7053679YP
  • Toro113426, 11346, 99-8012
  • Troy-Bilt717-3036, 717-3497, 917-3497, 959-3230
  • Warner5210-33, 5215-59
  • White717-0983, 717-3497, 917-0983, 917-3497
FITS MODELS
  • BolensFST14, FST15, LR13, LT14, LT145, LT15, LT16 and LT165
  • Cub Cadet1110, 1105, 1215, 1220, 1225, 1325, 1405, 1415, 1420, 1605, 1610, 1615, 1620, 1715, 1720 and 1730
  • Ford9800686
  • Lawn-Boy156729, 52140, 52144A, 52145A, 52153, 52161, 52163, 52163A and 52164, 1991-1992
  • MTDFST14, FST15, LT13, LT14, LT15, LT16, LT145 and LT165
  • Simplicity1613G, 1613H, 1615G, 1615H, 1616H, 2614H, 2616H, LT, LTG and LTH series
  • SnapperGT180, GYT, HT, LT, RYT and YT series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 5/16"
  • Rotation DirectionCounter Clockwise

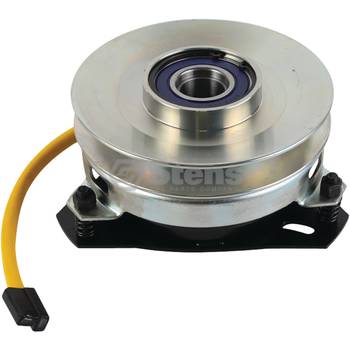

    • Xtreme PTO Clutch 5210-34

    Add to cart
    STEX0196
    DESCRIPTION
    Xtreme PTO Clutch
    Ariens 03450500
    REPLACES OEM
    • Ariens03450500, 050236, 3450500
    • Dixie Chopper50300
    • Exmark116277
    • Gravely03450500, 050236
    • Snapper7079197, 7079446, 7079446YP, 79197, 7-9197, 79446, 7-9446
    • Toro116277
    • Warner5210-34, 5210-50, 5215-88
    FITS MODELS
  • Ariens934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
  • Gravely934005, 934006, 934007, 934008, 934019 and 934020, HT series; 49065, 50267, 52271, 52628, 52626, 51385, 513386, 52627, 934010, 934011, 934012, 934013, 934014, 934016, 934017, 934018 and 934022, GEM series
  • SnapperZTR series 0-5
  • Toro612-Z, Serial No. 1000001-1999999, 616-Z and 620-Z, Serial No. 1000001-5999999, 616-Z, Serial No. 3900001-4999999, and Z118, Serial No. 79000001-79999999

    • Xtreme PTO Clutch 5215-129

    Add to cart
    STEX0164

    DESCRIPTION
    Xtreme PTO Clutch
    MTD 917-1708
    REPLACES OEM
    • Bolens717-1708, 917-1708
    • Craftsman707402, 7074022, 7074022YP, 717-1708, 74022, 7-4022, 917-1708
    • Cub Cadet717-1708, 917-1708
    • MTD717-1708, 917-1708
    • Snapper707402, 7074022, 7074022YP, 74022, 7-4022
    • Troy-Bilt717-1708, 917-1708
    • Warner5215-129
    • White717-1708, 917-1708
    FITS MODELS
  • Cub CadetLT1018, LT1650, LT1800, LT1850 and LT2150
  • MTD1527, 1600, 1800, 1170, 1180, 1515 and 1517
  • SnapperZTR Scrambler, series 5-6, ZTR Twin Stick, series 6 and ZTR Yard Cruiser series 1-4
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5215-13

    Add to cart
    STEX0165

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 1-603539
    REPLACES OEM
    • Exmark1-601979, 1-603463, 1-603539, 1-611190, 1-611223, 601979, 603463, 603539, 611190, 611223
    • Ferris1521823, 21823, 5021823
    • Scag461074, 481633, 48786
    • Simplicity1521823, 21823, 21823SM, 5021823, 5021823SM
    • Snapper21823, 2840890, 29678, 5021823, 7029678, 7029678YP
    • Snapper Pro21823, 29678, 5021823, 7029678
    • Warner5215-13, 5215-99
    FITS MODELS
  • ExmarkTurf Ranger 1800, Turf Tracer 5-Speed, Serial No. 89,999 and lower and Turf Tracer Hydro, Serial No. 70,000-129,999 and 190,000-319,999
  • Ferris5900027, 5900030, 5901009, 5901012, 5901014, 5901015, 5901194, BGF36K, BGF52K and UltraBelt GD series
  • ScagSSZ, STHM, SW and SWZ series
  • Snapper7080717, 7080682, 7080683, 7080685, 7080686, 7080687 and 7080695
  • Snapper Pro7080682, 7080683, 7080685, 7080686, 7080687, 7080695 and 7080717
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Integrated Water Tight, Impact Resistant Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch 5215-14

    Add to cart
    STEX0168

    DESCRIPTION
    Xtreme PTO Clutch
    AYP 532109550
    REPLACES OEM
    • AYP106316X, 109550X, 532109550
    • Bobcat188018, 188019
    • Craftsman106316X, 109550X, 532109550
    • Electrolux106316X, 109550X, 532109550
    • Exmark1-541001, 1-541003, 1-541050, 1-541353, 1-542322, 1-543259, 1-543860, 1-543862, 1-551054, 541001, 541003, 541050, 542322, 543259, 543860, 543862, 551054
    • Ferris1521083, 21083, 5021083
    • Great DaneD18000
    • Husqvarna109550X, 532109550, 532917063, 917063
    • Jonsered109550X, 532109550, 532917063, 917063
    • Poulan106316X, 109550X, 532109550
    • Snapper17063, 1-7063, 7017063, 7017063YP
    • Warner5215-14
    • Weedeater106316X, 109550X, 532109550
    FITS MODELS
  • AYP4181E94, GT180BR, GT180BT, GT180CT, GT180DR, GT180ER, GT180ET, GT180FR, GTK180AR, GTX180AT, GTX180BR, XC1182HB and YPGTV160AR
  • BobcatLynx - XDTBS420, XDTBS422 and XDTBS421, XGDXS120, XGDXS121, XT2000, XTB43012 and XTB43022
  • Cub Cadet1500, 1515, 1517 and 1525
  • ExmarkTurf Ranger and Turf Ranger 1800
  • FerrisHydroWalk Series
  • Great DaneChariot, 25 HP
  • HusqvarnaGT180, 1990-2011 and HGTK1180 AR
  • SnapperPro 8 Gear, Pro 8 Mid-size gear drive, Pro gear drive and Pro hydro
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5217-2

    Add to cart
    STEX0002
    DESCRIPTION
    Xtreme PTO Clutch
    Husqvarna 532145028
    REPLACES OEM
    • Ariens03601800
    • AYP145028, 532145028
    • Craftsman145028, 1686882, 1686882S, 1686882SM, 1708536, 1708536SM, 532145028
    • Dixon145028, 532145028
    • Electrolux145028, 532145028
    • Gravely03601800
    • Husqvarna145028, 532145028
    • Kees145028, 532145028
    • Massey Ferguson145028, 1686882, 1686882S, 1686882SM, 532145028
    • McCulloch145028, 1686882, 1686882S, 1686882SM, 532145028
    • Poulan145028, 532145028
    • Simplicity1686882, 1686882S, 1686882SM, 1708536, 1708536SM
    • Snapper1686882, 1686882S, 1686882SM, 1708536, 1708536SM
    • Snapper Pro1686882, 1686882S, 1686882SM
    • Warner5217-2, 5217-46
    FITS MODELS
  • AriensEZR, LT, Sierra and YT series
  • CraftsmanCO, CT, DB, DPR, PP, PR, QP, RE, RK, YG and YP series
  • GravelyGLT440 and GLT448
  • HusqvarnaGTVH200, 1998-2010, GTVH205, 1999-2010, YTH180, 954140010E, 1998-2006, YTH1342XP, YTH1542XPA, YTH1542XPB, YTH1542XPC, YTH1542XPD, YTH1542XPE, YTH1542XPF, YTH1542XPG, YTH2046A, YTH2046B, YTHK1542XPA, YTHK1542XPB and YTHK1542XPC
  • SearsCO, CT, DB, DPR, PP, PR, QP, RE, RK, YG and YP series
  • Simplicity400, Coronet, Regent and ZT series
  • SnapperRT1330, RT1330E and RT1330E Hydro
  • Snapper ProRT1330, 30" deck, hydro drive series 0
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 3/8"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5217-6

    Add to cart
    STEX0600
    DESCRIPTION
    Xtreme Electric PTO Clutch
    Xtreme X0003
    REPLACES OEM:
    Ariens: 03643100
    AYP: 160889, 532160889, 53740
    Bolens: 1772388, 717-1459, 917-1459, GW-1772388
    Craftsman: 03643100, 160889, 1772388, 532160889, 53740, 688EC, 7053740, 7053740S, 7053740SM, 717-1459, 917-1459, GW-1772388
    Cub Cadet: 1772388, 717-1459, 917-1459, GW-1772388
    Dixon: 160889, 532160889
    Electrolux: 160889, 532160889
    Exmark: 104-3334
    Gravely: 03643100
    Huskee: 1772388, 717-1459, 917-1459, GW-1772388
    Husqvarna: 160889, 532160889
    John Deere: AM119683
    Jonsered: 160889, 532160889
    Kees: 160889
    Massey Ferguson: 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
    McCulloch: 160889, 1772388, 532160889, 7053740, 717-1459, 917-1459
    MTD: 1772388, 717-1459, 917-1459, GW-1772388
    Poulan: 160889, 532160889
    Roper: 160889, 532160889
    Snapper: 53740, 7053740, 7053740S, 7053740SM
    Snapper Pro: 7053740
    Swisher: 688EC
    Toro: 104-3334
    Troy-Bilt: 1772388, 717-1459, 917-1459, GW-1772388
    Warner: 5217-35, 5217-6, 5217-7, 5217-9
    White: 1772388, 717-1459, 917-1459, GW-1772388
    Woods: 03643100
    Xtreme: X0003
    Yazoo: 160889, 532160889
    FITS MODELS:
    Ariens: EZR, LT and YT series; Mini Zoom, Sierra, Sport Zoom and Zoom series
    Exmark: Quest, 42" deck, Serial No. 790,000 and higher
    Gravely: EZR, LT and YT series; Mini Zoom, Sierra, Sport Zoom and Zoom series
    Husqvarna: LTH15, LTH130-LTH160, YTH1542A, YTH1542B, YTH1542D, YTH1542E, YTH1746A, YTH1746B, YTHK1542A, YTHK1542B and YTHK1746B
    John Deere: STX38 and STX46, Serial No. 270,000 and lower, black deck
    Snapper: LT145H, hydro series C, LT160H, hydro series C. D, E, F, G, H, LT180H, hydro series D, F, G, H, I, Yard Cruiser series 0, 1 and 2, YT Yard Cruiser, series 1 and 2, 33" and 38" deck
    Toro: DH-150, DH-170, DH-190, DH-200, DH-210, DH-220, RZT480H, Serial No. 280000001-290999999, Timecutter 14-38Z, 16-38Z, 16-42Z, Z4200, Serial No. 230000001-2409999999, Timecutter Z420, Serial No. 250000001-270999999, Timecutter Z4220 and Z4202, Serial No. 280000001-2909999999, ZD420 and ZD420T, Serial No. 260000001-311999999
    Troy-Bilt: LTX13095, LTX13102, LTX13103, LTX13105, LTX13123 and LTX13104
    Woods: R1540

    Xtreme PTO Clutch 5218-221

    Add to cart
    STEX0245

    DESCRIPTION
    Xtreme PTO Clutch
    Simplicity 5100084SM
    REPLACES OEM
    • Craftsman5100084, 5100084S, 5100084SM
    • Ferris5100084, 5100084S, 5100084SM
    • Massey Ferguson5100084, 5100084S, 5100084SM
    • McCulloch5100084, 5100084S, 5100084SM
    • Simplicity5100084, 5100084S, 5100084SM
    • Snapper5100084, 5100084S, 5100084SM
    • Snapper Pro5100084, 5100084S, 5100084SM
    • Warner5218-221
    FITS MODELS
  • FerrisEvolution with 36", 48" and 52" deck, F50XT series with 36" deck, F150XT series with 52", F200XT series with 61" deck, Flail series, IS1500Z, IS1500ZX, IS2000Z and Procut S series
  • Massey Ferguson3000 and 3900 series
  • SimplicityCitation Series 5900522, 5900523, 5900524, 5900525, 5900526, 5900527, 5900530, 5900531, 5900762, 5900764, 5900820, 5900821, 5900954 and 2690479
  • SnapperS50X, S50XT, S75X, S125XT, S150X, S200X, S200XT, SW30KAV and SW35KAV series
  • Snapper ProS50XT, S75XT, S150XT, S200XT and SW30 series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter6 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5218-26

    Add to cart
    STEX0043

    DESCRIPTION
    Xtreme PTO Clutch
    Grasshopper 606242
    REPLACES OEM
    • Craftsman35520, 58925, 7058925, 7058925YP
    • Grasshopper388767, 388769, 606242
    • Kees7058925
    • Massey Ferguson58925, 7058925
    • McCulloch58925, 7058925
    • Snapper35520, 58925, 7058925, 7058925YP
    • Snapper Pro58925, 7058925
    • Warner5218-147, 5218-170, 5218-214, 5218-226, 5218-257, 5218-26, 5218-58, 5218-67
    • Woods388767, 388769, 58925, 606242, 7058925, 73558, 74075
    FITS MODELS
  • Grasshopper618, 718K, 720K, 721, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725, 725A, 725G2, 725K, 725K2, 729G2, 928G2 and 932G2
  • SnapperEZF, MZM, ZF, ZM and ZMT series
  • Snapper ProEZF, MZM, ZF, ZM and ZMT series
  • WoodsF21D, FZ21D, FZ23B and FZ28K, Serial No. 1174789 and higher, FZ25D; and Mow 'n Machines 6182, 6200, 6215, 6250, F23, F25, F25L and F27
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight, Impact resistant Wire Harness
  • Belt WidthDouble A
  • ID1 1/8"
  • Pulley Diameter4 7/8"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch GT1-BS03

    Add to cart
    STEX0486

    DESCRIPTION
    Xtreme PTO Clutch
    Murray 1687746YP
    REPLACES OEM
    • Briggs & Stratton1686880SM, 1687746YP
    • Craftsman1686880, 1686880SM
    • Murray1686880, 1686880SM, 1687746YP
    • OguraGT1BS03, GT1-BS03
    • Simplicity1686880, 1686880SM, 1687746, 1687746YP, 1717664SM, 1720532, 1720532SM
    • Snapper1686880, 1686880SM, 1687746, 1687746YP, 1717664, 1717664SM, 1720532
    FITS MODELS
  • MurrayEZT2042, ZT1644E, ZT7000, ZTS6000 and ZTX7500
  • SimplicityBaron, Baron XL, Braodmoor, Conquest, Pacer, Rapid and Regent series
  • Snapper150Z, 200Z, 285Z, 300Z, RD, RZT, YT and ZT series; EZT2042, LT2246, YT2452, ZT2446 and ZT2752
    • SPECS
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • High Torque Cool Coil Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch GT1-FE01S

    Add to cart
    STEX0613

    DESCRIPTION
    Xtreme PTO Clutch
    Simplicity 5023432SM
    REPLACES OEM
    • Ferris5022584, 5023231, 5023432, 5023432SM
    • OguraGT2.5-FE01S, GT25FE01S
    • Simplicity5023432, 5023432SM
    • Snapper5023432, 5023432SM
    FITS MODELS
  • SimplicityCitation series, Colt ZT2148T, Colt ZT2348T and Colt ZT2352T
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Water Tight, Replaceable Wire Harness Pigtail
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter6 7/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch GT2.5-SN01

    Add to cart
    STEX0600

    DESCRIPTION
    Xtreme PTO Clutch
    Snapper 7075672YP
    REPLACES OEM
    • OguraGT2.5-SN01, GT25SN01
    • Simplicity7075672YP
    • Snapper7075081, 7075672, 7075672YP, 75672
    • Snapper Pro7075081, 7075672, 7075672YP
    FITS MODELS
  • SnapperPro series 1, 2 and 3 Joystick
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Water Tight, Replaceable Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch GT-JD11

    Add to cart
    STEX0487

    DESCRIPTION
    Xtreme PTO Clutch
    Snapper 1757359YP
    REPLACES OEM
    • Ferris1757359
    • Murray1757359YP
    • OguraMAGTJD11, MA-GT-JD11
    • Simplicity1757359YP
    • Snapper1757359YP
    • Snapper Pro1757359
    FITS MODELS
  • Ferris5900111, 5900543, 5900544, 5900545, 5900546, 5900604, 5900962, 5900963, 5900989, 5900990 and 5901037
  • SimplicityAxion 78007600, 7800380 and 7800360
  • Snapper2691043-03, 2691043-04, 2691166-00, 2691136-00, 2691136-01, 2691135-00, 2691137-00, 2691137-01, 2691164-00, 2691165-00 and 2691167-00
  • Snapper Pro5900895 and 5900896 SW series, Serial No. 2016545302 and lower
    • SPECS
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • High Torque Cool Coil Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter5 5/16"
  • Rotation DirectionCounter Clockwise
