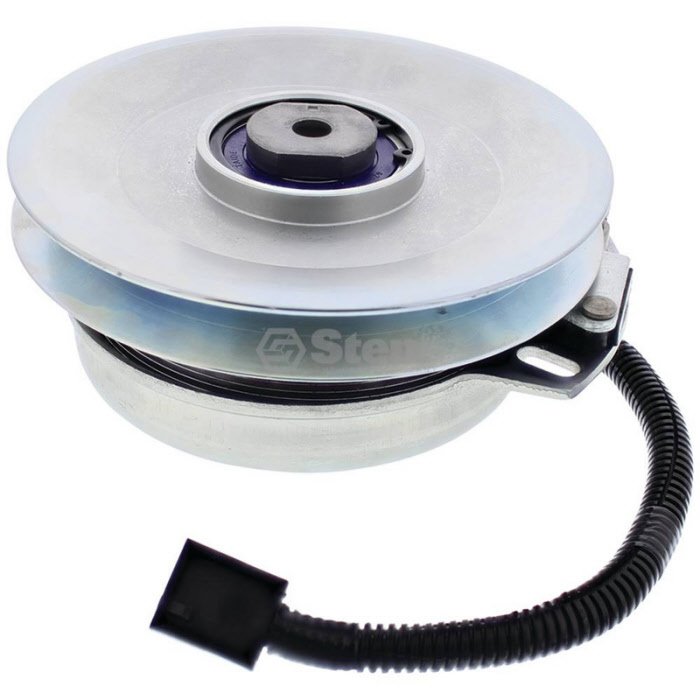

Xtreme PTO Clutch 5218-99

Add to cart
STEX0461

DESCRIPTION
Xtreme PTO Clutch
Exmark 116-1611
REPLACES OEM
  • Exmark103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
  • Toro103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
  • Warner5218-168, 5218-202, 5218-209, 5218-99
FITS MODELS
  • ExmarkLazer Z AC EFI, Serial No. 440,000 and higher, Lazer Z air cooled EFI, Serial No. 720,000 and higher, Lazer Z AS EFI, Serial No. 510,000-789,999, Lazer Z AS, Serial No. 510,000-719,999 and Lazer Z EFI, Serial No. 370,000-439,999
  • ToroZ Master Z500, Serial No. 280000001-311999999, Z557, Serial No. 240000001-260999999, Z560, Serial No. 270000001-270999999 and Z 5588E, Serial No. 240000001-260999999
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Integrated Water Tight Wire Harness
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Packaging typeBranded box
  • Pulley Diameter7 1/8"
  • Rotation DirectionClockwise

    • Xtreme PTO Clutch 5219-122

    Add to cart
    STEX0743

    DESCRIPTION
    Xtreme PTO Clutch
    Warner 5219-122
    REPLACES OEM
    • Warner5219-122
    SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Triple Wire Protection
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Xtreme Torque Series
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter7 3/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5219-13

    Add to cart
    STEX0138

    DESCRIPTION
    Xtreme PTO Clutch
    Toro 109-7035
    REPLACES OEM
    • Exmark104-3624, 109-7035
    • Toro104-3624, 109-7035
    FITS MODELS
  • ExmarkLazer Z CT, Serial No. 370,000 and higher
  • ToroTimeCutter 74401, 74502 and 74601, Serial No. 220000001-240999999; TimeCutter 74701, Serial No. 230000001-230999999; TimeCutter 74602 and 74802, Serial No. 240000001-240999999; TimeCutter 74405, 74801 and 74702, Serial No. 230000001-240999999; TimeCutter 74401, 74501, 74502, 74601 and 74701, Serial No. 210000001-220999999; TimeCutter 74801, Serial No. 220000001-220999999; and Z Master Z400, Serial No. 250000001-280999999
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter7 1/4"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5219-81

    Add to cart
    STEX0379

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 110-6766
    REPLACES OEM
    • Exmark110-6766
    • Toro110-6766
    • Warner5219-81
    FITS MODELS
  • ExmarkQuest, Serial No. 790,000 and higher, 48" and 52" deck
  • ToroSS5000, SS5060, ZS5000, Z5020, Z5030, Z5035, Z5040, Z5060, Timecutter, Titan Z4800, Z5200, ZX5000 and ZX5020
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6 5/16"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch GT2.5-MC04

    Add to cart
    STEX0616

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 103-0665
    REPLACES OEM
    • Exmark103-0663, 103-0665, 1-641212, 1-641300, 641212, 641300
    • Ferris1521145, 5021145, 5021145SM
    • OguraGT2.5-MC04, GT25MC04, MAGTEXM14, MA-GT-EXM14
    • Scag461395, 461409, 461716
    • Simplicity5021145, 5021145SM
    • Toro641299
    FITS MODELS
  • ExmarkLazer Z series
  • FerrisHydro Drive, HydroWalk DD, HydroWalk and ProCut series
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • High Torque Cool Coil Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Water Tight, Replaceable Wire Harness Pigtail
  • Belt Width1/2" or 5/8"
  • ID1 1/8"
  • Pulley Diameter6 1/16"
  • Rotation DirectionClockwise
