Power King / Snapper
>
Body, Frame and Steering
>
Hood, Fenders, Gas Tank and Dash
>
Model 1618 / 1620
>
Dash Ser # 65015 - 002001707
Dash Ser # 65015 - 002001707

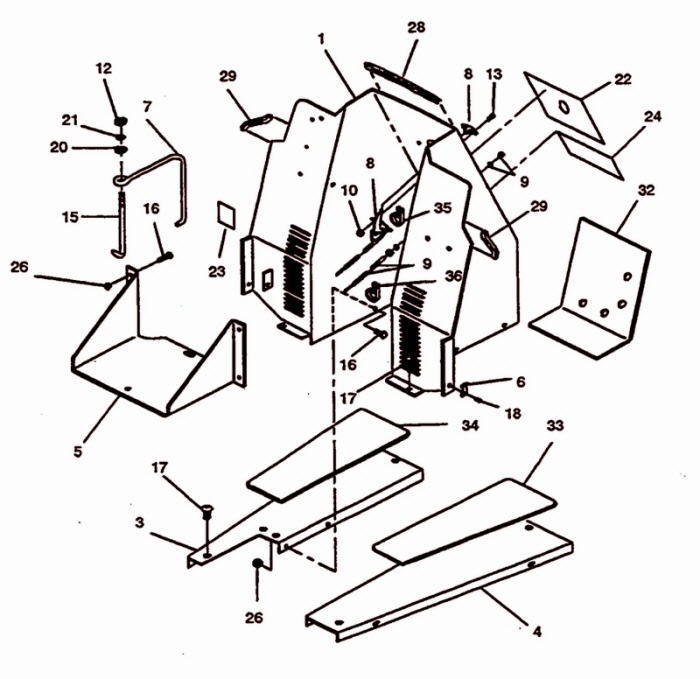

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Product Diagram
Click on the image to enlarge.
Item # 1
Add to cart
102357
Console - Includes firewall
Item # 3
Add to cart
01-6308
Plate - Foot rest, right side
Item # 4
Add to cart
01-6309
Plate - Foot rest, left side
Item # 5
Add to cart
01-7106
Shelf - Battery
Item # 6
Add to cart
02-4716
Latch - "T" handle, flexible draw
Item # 7
Add to cart
03-0515
Bracket - Battery hold down
Item # 8
Add to cart
03-0908
Control - Throttle with knob
Item # 9
Add to cart
03-0911
Control - Choke, 25" wire
Item # 10
Add to cart
84-0030
Nut - Lock, No. 10-24 hex
Item # 12
Add to cart
84-0111
Nut 1/4 NC, hex
Item # 13
Add to cart
84-1010
Screw - No. 10-24 x 1/2 RHM
Item # 15
Add to cart
84-1014
"L" Bolt - 1/4 NC x 8-3/8 OAL
Item # 16
Add to cart
84-2010
Screw 5/16" NF x 1/2" HHC
Item # 17
Add to cart
84-2044
Screw 5/16" NC x 7/8" HHC
Next >
!
