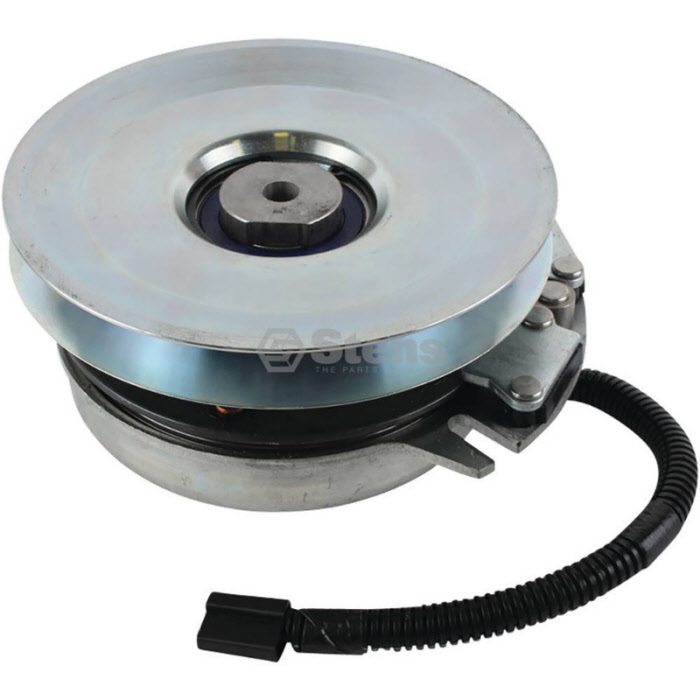

Xtreme PTO Clutch 5219-13

Add to cart
STEX0138

DESCRIPTION
Xtreme PTO Clutch
Toro 109-7035
REPLACES OEM
  • Exmark104-3624, 109-7035
  • Toro104-3624, 109-7035
FITS MODELS
  • ExmarkLazer Z CT, Serial No. 370,000 and higher
  • ToroTimeCutter 74401, 74502 and 74601, Serial No. 220000001-240999999; TimeCutter 74701, Serial No. 230000001-230999999; TimeCutter 74602 and 74802, Serial No. 240000001-240999999; TimeCutter 74405, 74801 and 74702, Serial No. 230000001-240999999; TimeCutter 74401, 74501, 74502, 74601 and 74701, Serial No. 210000001-220999999; TimeCutter 74801, Serial No. 220000001-220999999; and Z Master Z400, Serial No. 250000001-280999999
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • Heavy Duty "FatBoy Series" Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter7 1/4"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5219-56

    Add to cart
    STEX0368

    DESCRIPTION
    Xtreme PTO Clutch
    Toro 108-9512
    REPLACES OEM
    • Toro108-9512
    • Warner5219-56
    FITS MODELS
  • ToroTimeCutter Z480, ZX480 and ZX525, Serial No. 250000001-260999999; and XL440H, 2005-2010
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Triple Wire Protection
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter7"
  • Rotation DirectionCounter Clockwise

    • Xtreme PTO Clutch 5219-81

    Add to cart
    STEX0379

    DESCRIPTION
    Xtreme PTO Clutch
    Exmark 110-6766
    REPLACES OEM
    • Exmark110-6766
    • Toro110-6766
    • Warner5219-81
    FITS MODELS
  • ExmarkQuest, Serial No. 790,000 and higher, 48" and 52" deck
  • ToroSS5000, SS5060, ZS5000, Z5020, Z5030, Z5035, Z5040, Z5060, Timecutter, Titan Z4800, Z5200, ZX5000 and ZX5020
    • SPECS
  • Cool Coil Technology
  • Does not fit all applications - Verify part number by referring to model specifications
  • High Temperature Bearing Upgrade
  • Replaceable Pulley Bearing
  • Super Smooth "Xtreme Precision" Machined Pulley
  • To prevent premature clutch failure, follow the instruction sheet included with the clutch
  • Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
  • Belt Width1/2" or 5/8"
  • ID1"
  • Pulley Diameter6 5/16"
  • Rotation DirectionCounter Clockwise
